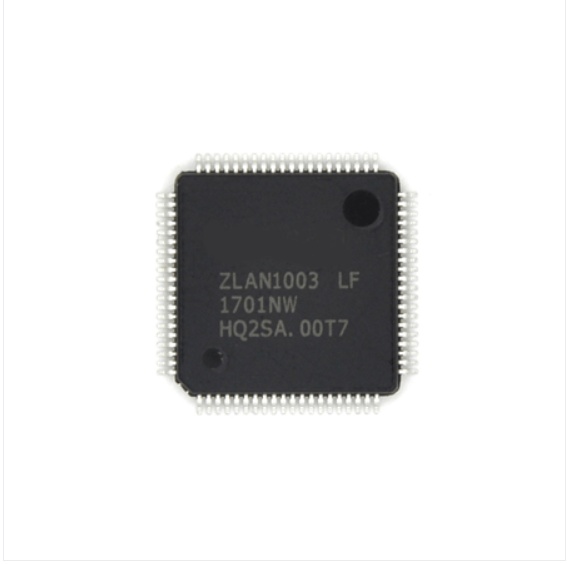

1003 Single chip solution TTL/UART serial port SCM can connect to Ethernet,
is a powerful single chip for serial port converting to TCP/IP,
it internally integrates software function needed by 10/100M fast Ethernet MAC and PHY interface,
UART serial port and serial port to TCP/IP.
Different from ordinary scheme, ZLAN1003 has 3 advantages: easy to use, stable & reliable,
low system cost. ZLAN1003 can use to maximize the realization of TCP/IP,
Internet connectivity products easily.
The convenience of ZLAN1003 is that it’s a real consume single chip for serial port to TCP/IP without any driver can realize the data transmission from UART to TCP/IP.
All the parameters configuration can done by ZLVircom software through Ethernet port,
Users can one-click configure all the interior parameters of ZLAN1003 through ZLVircom software.
As a TCP client, ZLAN1003 will automatically establish TCP connection; As the TCP server,
automatically accept connection, without any Users MCU intervention.
The Users MCU only need to wait ZLAN1003 finishing its initialization then go to send and receive serial port (UART) data.
The stability of ZLAN1003 is that its interior TCP/IP protocol is prove by many years business application practices. The interior includes: TCP, UDP, IPv4, ICMP, ARP, HTTP, etc.
