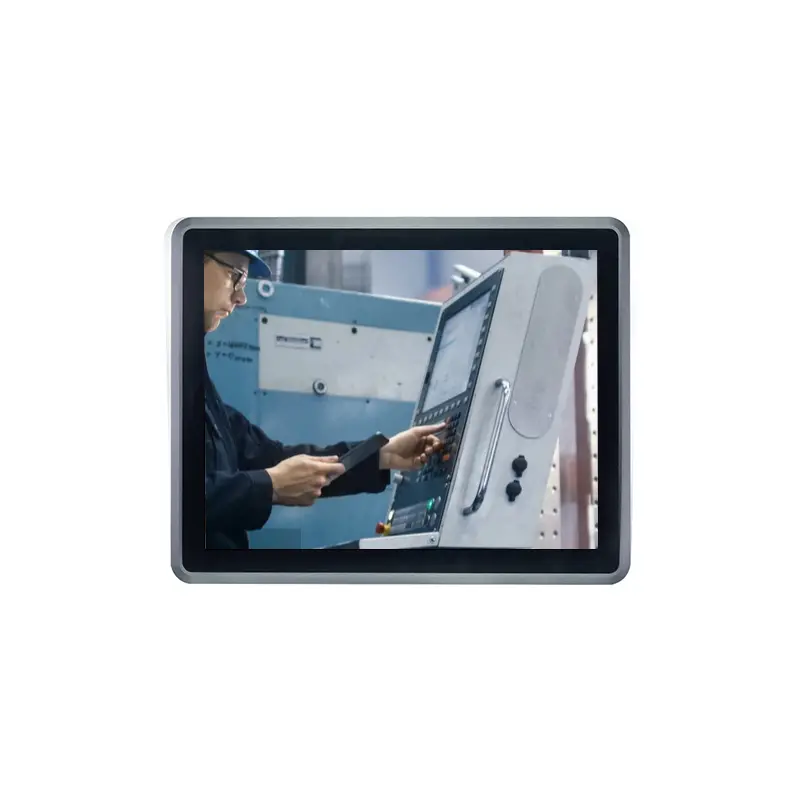

15 inch Fanless Resistive touch screen computer linux,
with Brightness:350 cd/m2; Ratio:4:3 ; Resolution:1024 * 768,
Support Auto power on 、Timing boot、Wake on LAN、PXE boot,
and 1*M.2 2280 slot(SATA Protocol),1*2.5” HDD.
| System Parameter | |
| Model | ITPC-A500 embedded touch panel pc |
| Processor | Intel Celeron 4205U, （Dual core dual threads，1.8Ghz，2MB Cache） |
| Intel Celeron J6412, (Quad core quad threads, 2.0GHz, Max turbo 2.6GHz) |
|
| Intel Core i3-10110U, (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) |
|
| Intel Core i5-8265U, with（Quad core eight threads，1.6Ghz，Max turbo 3.9Ghz，6MB Cache） |
|
| Intel Core i7-8565U, with（Quad core eight threads，1.8Ghz，Max turbo 4.6Ghz，8MB Cache） |
|
| Memory | Support 1*DDR4 2133/2400 SODIMM Memory Slot， Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics |
| Display port | 1*HD，1*LVDS, 【Support synchronous or asynchronous dual display】 |
| Storage | Onboard 1*M.2 2280 slot（SATA Protocol），1*2.5” HDD，Support RAID 0/1 |
| Expansion | 1*Mini PCIE slot(Support WIFI/BT/3G/4G Optional,embedded SIM slot) |
| Expansion Function | GPIO（8 Input 8 Output）、2*LAN、 4*COM、2*USB2.0 , （Standard version doesn’t include these ports） |
| Other Function | TPM2.0 security encryption、 Timing boot、Wake on LAN、PXE boot、 Watchdog（0～255 level）, (Standard version doesn’t set these function) |
| I/O | 1*HD,2*COM(COM1&COM2 RS232/RS422/RS485 Optional, 6*COM Optional),1*Power Switch |
| 1*2Pin power supply phoenix connector, 4*USB3.0,2*Intel 1000M LAN（4*LAN Optional） |
|
| LCD | Size：15 inch TFT-LCD； |
| Ratio：4：3； | |
| Resolution：1026 * 768； | |
| Brightness：350 cd/m2； | |
| Viewing Angle：Full Viewing Angle | |
| Touch Screen | Industrial grade multi-touch resistance touch screen， |
| Speaker | Two 8-ohm 2-watt speaker |
| Power Supply | DC 9V ～ 36V wide voltage Input， support positive pole and negative electrode connect reversely protection; |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation，Medical， Logistics Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | Titanium gray (Color can be customized) |
| Material | Aluminum alloy chassis |
| Size | 366mm * 290mm * 60 mm |
| Weight | 3.9kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial）， -20℃ ～ +60℃（Industrial SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
