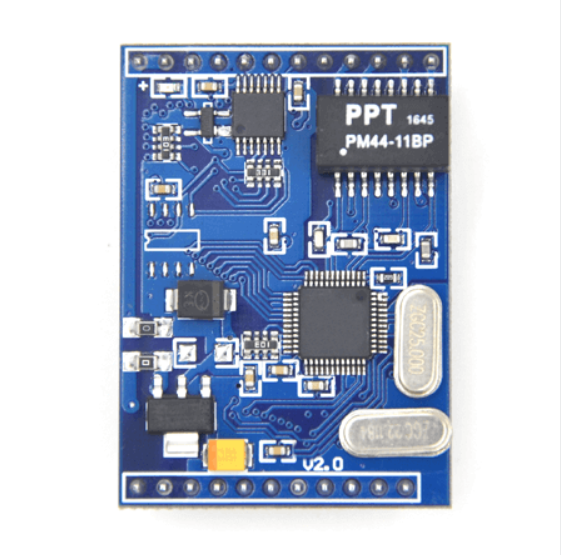

2002 High stability serial to Ethernet core module,
it is an embedded module of serial port to Ethernet. It provides a fast, stable and economical method for embedded system and microcontroller access to TCP/IP network. Not only can ensure that your products are liste in market quickly, but also provide support for the stability of your products.
ZLSN2002 has 2 rows of single row needles, 11 needles and 12 needles, which are inserte through row pin to the user’s circuit board. This includes two TTL-type serial wires for connecting the single chip. It provides four Ethernet cable connections that can connect Ethernet cable. Provide 5V power supply and GND to ZLSN2002 then it can realize the two-way forwarding of serial port and Ethernet port. In addition, the ZLSN2002-3.3 V model supports 3.3V power supply.Compare with ZLSN2000, ZLSN2002 embedde networking module is already embedd network transformer internally, so users only need to connect network pins and RJ45 Ethernet port, serial port pin connecting to the serial port of user MCU.
