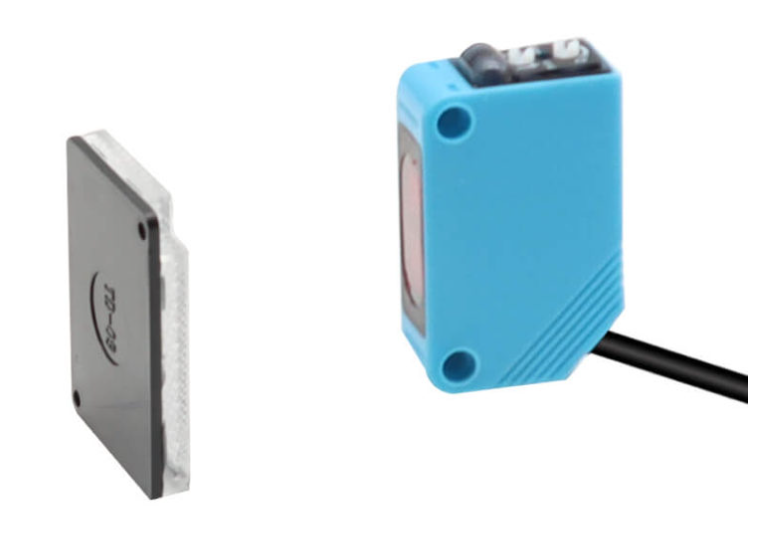

AE3Z-R81 Retro Reflective Photoelectric Sensor,
| Type and Specification | |||
|---|---|---|---|
| Type | Square type | ||
| Dimension | 31*20*10.8 | ||
| DC type | NPN | NO | AE3Z-R61 |
| PNP | NO | AE3Z-R81 | |
| Detection range | 4m±10% | ||
| Detection target | Transparent/opaque object | ||
| Detection range regulation | setting | ||
| Response time | 1ms | ||
| Connection delay | 1.5ms | ||
| Light source | Infrared light 660nm | ||
| Power supply | DC type: DC 12-24V (6-36V), impulse (p-p) 10% below | ||
| Withstand voltage | AC1000V 50/60Hz 1min between charging part and housing | ||
| Voltage influence | Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance |
||
| Consumption current | N/P type: ≤20mA | ||
| Control output | N/P type: ≤300mA | ||
| Loop protection | N/P/D type: reversal connection protection, surge absorption, load short-circuit protection |
||
| Ambient temperature & humidity | Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH |
||
| Temperature influence | Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance |
||
| Insulation impedance | ≥50MΩ (DC500 megameter), between charging part and housing |
||
| Material | Housing: Nickel plated brass (ABS), Detection surface (lens): PMMA |
||
| Protection class | IP67 | ||
| Cable length | 2m | ||
