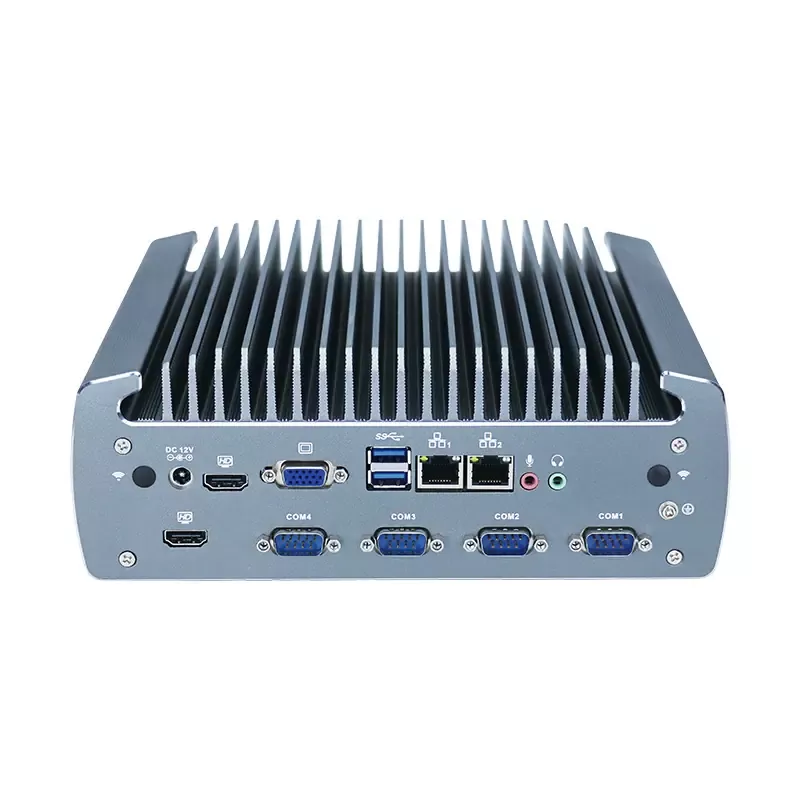

8th Gen Industrial Computer i3 i5 i7,
Fanless Design, Embedded Industrial computer,
with Onboard Intel Core i3 8100T,i5 8500T,i7 8700T,
Support 2*DDR4 2133/2400 , Max. Support 32GB RAM,
olso-Support 1*M.2 2280,Optional 2*2.5” hard disk,
and Optional 6*COM（1*COM optional RS232/RS485/ RS422).
| System Parameter | |
| Model | IBOX-605 Fanless PC |
| Processor | Onboard Intel Core i3 8100T , (quad core, 4 threads，3.1 GHz). Onboard Intel l Core i5 8500T , (6 core ,6 threads，2.1GHz,Max 3.5 GHz), Onboard Intel l Core i7 8700T , (6 core ,12 threads，2.4 GHz,Max:4.0 GHz) |
| Chip | Intel H310 |
| Memory | Support 2*DDR4 2133/2400 SODIMM memory slot， Max :32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 630 |
| Display port | 1*VGA port，2*HDMI port |
| Front I/O | 6*USB2.0 ，2*COM，1* Metal switch |
| Rear I/O | 2*USB3.0，2*Intel 1000M LAN ，1*VGA， 2*HDMI，1*audio interface， 1*Mic,1*Line out4*COM, （COM 2 Optional RS232/RS422/485），1*DC |
| Expansion Slot | Support 1*M.2 2280 slot（Compatible PCIE and SATA）, Support 1*MINI PCIE slot（WIFI/BT）, Expansion Port：GPIO（4 Input*4 Output） |
| Network | 2*RTL8111E 10/100/1000M Lan |
| Storage port | Support 1* M.2 2280 slot， 1*2.5” HDD （Optional 2*2.5inch hard disk） |
| Power Supply | Support DC 12 -19 V input , 【DC 9 ～ 36V wide voltage Optional】 |
| Other functions | Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、 Watchdog（0～255 level） |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum， surface anodic oxidation |
| Size | 230 * 219 * 84mm【not include wall bracket】 |
| Weight | 4.0 kg【not include wall bracket】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industry SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
