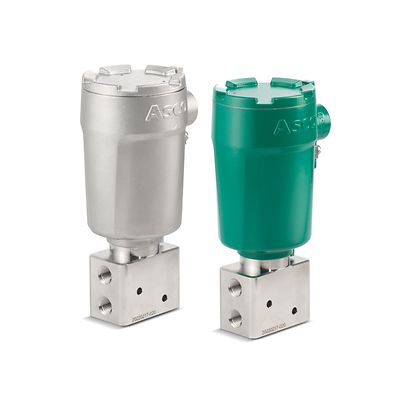

ASCO™ Series 327C
Product Description
The ASCO Series 327C, also known as 8327C, is the next generation line of 3/2-way direct-acting solenoid valves requiring zero minimum operating pressure. Its balanced poppet construction permits high flows at minimum power levels, making it ideal for power plants, refineries, and chemical processing facilities. The valve also incorporates features that combine reliability and durability to increase operational efficiency and improve process certainty. The 3/2-way direct-acting solenoid valves are ideal for process valve piloting applications.
Specifications
- Valve Actuation
- Solenoid – Direct Acting
- Body Material
- Stainless Steel
- Media
- Air, Inert Gas, Light Oil, Water
- Pipe / Port Size
- 1/4″
- Port Type
- G ISO228/1-G BSPP, NPTF
- Function
- 3 way – 3/2 Universal
- Flow
- Standard Construction: 0.8 Cv, 0.7 Kv
NVR, TP-NVR: 1.1 Cv, 0.95 Kv
IS and IS NVR: 0.35 Cv, 0.3 Kv
IS TP-NVR: 0.52 Cv, 0.45 Kv
- Voltage
- DC: 6, 12, 24, 48, 120, 240 Class H
125, 250 DC Battery ChargingAC: 24/50-60, 48/50-60 Class H
120/60,110/50 Class H
208/50-60 Class H
240/60, 230/50 Class H
- Operating Environment
- Hazardous, Indoor, Outdoor
- Standards / Regulations
- UL CERTIFIED HAZARDOUS LOCATION GENERAL PURPOSE VALVE FILE E25549 FOR US AND CANADA, CLASS I Div1 GROUPS BCD, CLASS II GROUPS EFG PER UL429/UL1203 AND CAN C22 CSA NOS. 139, 30, 25. ENCLOSURE TYPES 4X,6P. SINGLE SEAL PER UL122701. CLASS I ZONE 1 GROUP IIB +H2 AND CLASS II, ZONE 21 GROUP IIIC. IECEx AND ATEX Ex db IIC Gb, Ex tb IIIC Db (IECEx UL 23.0019X, UL 23 ATEX 2971X). INGRESS PROTECTION RATED IP66, IP68. (MODEL 327C Ex db tb FLAMEPROOF)
