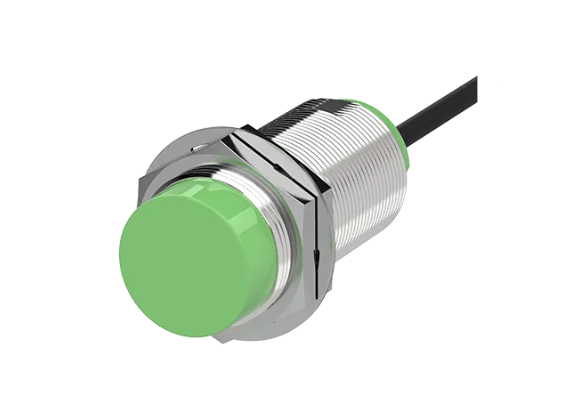

AUTONICS CR30-15DN2,
Data sheet Print
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Standard sensing target | 50×50×1mm(iron) |
| Response frequency | 50Hz |
| Current specification | Current consumption: Max.15mA |
| Control output | NPN Normally Closed |
| Material | Brass(nickel plated) |
| Protection structure | IP65 |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 20% of sensing distance |
| Weight | ≈ 206g (≈ 243g) |
