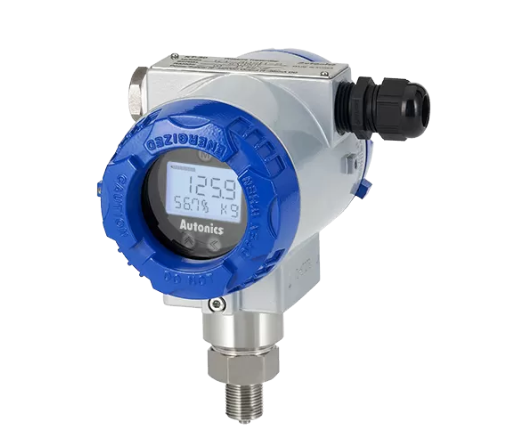

AUTONICS KT-302HA-0610,
- Measured materials : Liquid, gas, oil (except corrosive environment of stainless steel type 316)
- Power voltage : 9-45VDC
- Display method : PV display part: 7-segment 5-digit, Parameter display part: 16-segment 8-digit, Bar LED: 52
- Display range : -9999 to 99999
- Output : DC4-20mA (2-wire) Low-limit 3.8mA, high-limit 22.8mA
- Environment_Ambient temperature : -20 to 70 ℃, storage: -40 to 85 ℃
- Environment_Ambient humidity : 0 to 85%RH, storage: 0 to 85%RH
- Material : Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316
- Protection structure : IP67(IEC standard)
