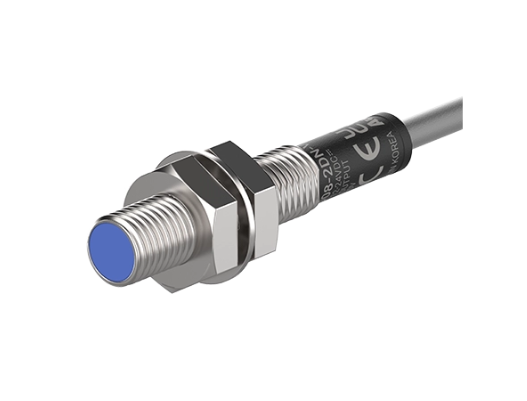

AUTONICS PRD08-2DP2-V,
Data sheet Print
| Installation | Flush |
|---|---|
| Sensing side diameter | Ø8mm |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1kHz |
| Indicator | Operation indicator (red LED) |
| Unit weight (packaged weight) | ≈ 43 g (≈ 63 g) |
| Power voltage | 12 – 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 – 30 VDC |
| Current specification | Current consumption: Max. 10mA |
| Control output | ≤ 200 mA |
| Residual voltage | Max. 2V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP67(IEC standard) |
| Connection | Cable type |
| Cable Standard/material | Oil resistant cable (gray): polyvinyl chloride (oil resistant PVC) |
| Material | Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT |
