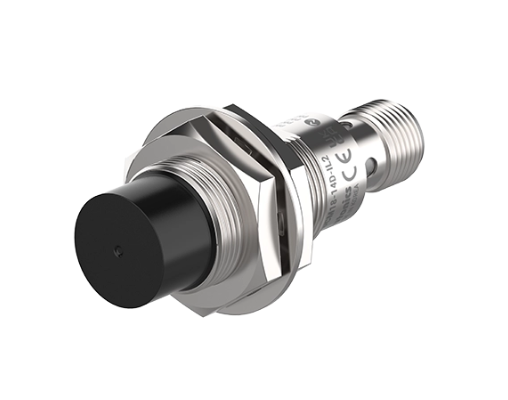

AUTONICS PRDCM18-14D-IL2,
Data sheet Print
| Installation | Non-flush |
|---|---|
| Sensing side diameter | Ø18mm |
| Sensing distance | 14mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 40×40×1mm(iron) |
| Response frequency | 200Hz |
| Indicator | IO-Link mode, SIO mode |
| Unit weight (packaged weight) | ≈ 41g (≈ 81g) |
| Power voltage | 12 – 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 – 30 VDC |
| Current specification | IO-Link mode: ≤ 25 mA, SIO mode: ≤ 20 mA |
| Control output | Max. 100mA |
| Residual voltage | Max. 2V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 10 times) |
| Environment_Ambient temperature | -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP67(IEC standard) |
| Connection | Connector models |
| Connector type | M12 plug connector |
| Material | Case/Nut: nickel plated brass, washer: nickel plated iron, sensing side: PBT |
