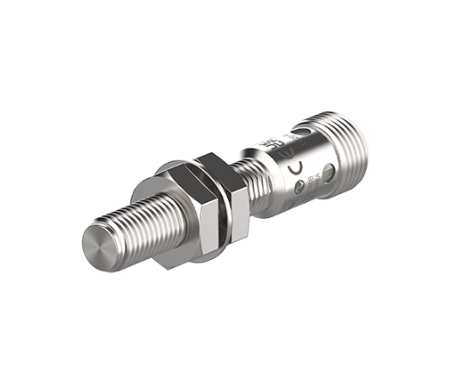

AUTONICS PRFDCM08-2D-IL2,
Data sheet Print
| Installation | Flush |
|---|---|
| Sensing side diameter | Ø8mm |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 150Hz |
| Indicator | IO-Link mode, SIO mode |
| Unit weight (packaged weight) | ≈ 10 g (≈ 35 g) |
| Power voltage | 10 – 30 VDC (ripple P-P: ≤ 10 %) |
| Current specification | Current consumption: Max. 20mA |
| Control output | Max. 100mA |
| Residual voltage | ≤ 2.5 V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | 1,000 VAC~ 50 / 60 Hz for 1 minute (between all terminals and case) |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 10 times) |
| Environment_Ambient temperature | -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP66, IP67 (IEC standard), IP67G (JEM standard), IP68 |
| Connection | Connector models |
| Connector type | M12 plug connector |
| Material | Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303) |
