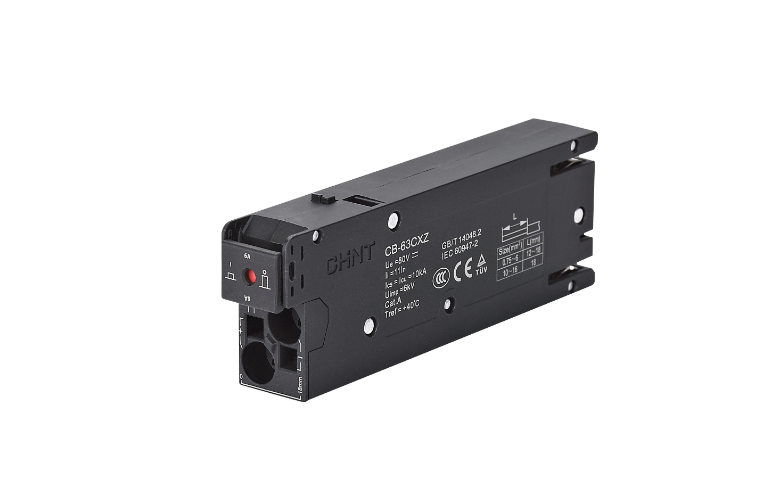

CHINT CB-63CXZ Moulded Case Circuit Breaker (MCCB),
provides high-performance DC protection for power distribution systems up to 80 V and 63 A.
furthermore ir is Designe to safeguard circuits from overloads and short circuits, it combines compact structure, thermomagnetic trip technology,
and 10 kA breaking capacity. With long mechanical endurance, plug-in installation, and CE/TÜV certifications,
finally the CB-63CXZ ensures safe, reliable operation in DC networks such as photovoltaic systems and telecom power supplies.
- Standard: IEC 60947-2
- furthermore Certifications: CE, TÜV
- in addition Rated Current (In): 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A
- moreover Rated Voltage (Ue): DC 80 V
- however Poles: 1P
- but Trip Unit Type: Thermomagnetic
- on the other hand Instantaneous Trip Current: 11 × In ± 20 %
- conversely Rated Short-Circuit Breaking Capacity (Icn): 10 kA
- in contrast Rated Service Short-Circuit Capacity (Ics): 10 kA
- Rated Isolation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Mechanical Life: 10,000 operations
- as a result Electrical Life: 4,000 operations
- Reference Temperature: +40 °C
- Operating Temperature: −40 °C to +70 °C
- Altitude: ≤ 2,000 m
- Conductor Size: 0.75 – 16 mm²
- Wire Insertion Depth: 25 mm
- similarly Incoming Mode: Bottom feed
- Mounting Type: Plug-in design
- likewise Pollution Degree: 3
- in the same way Protection Degree: IP20 (direct install) / IP40 (in distribution box)
- finally Applications: DC circuits, photovoltaic systems, and battery energy storage systems
