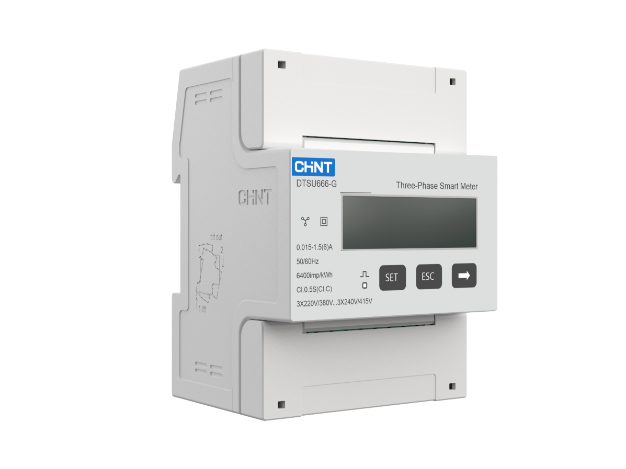

CHINT DTSU666G 1.5(6)A 4P,
-Bi-directional Measurement for kW and kWh
-Multi Parameter measurement
-Modbus-RTU communication
-Din Rail Mounted
-Active power refresh rate ≤ 50ms
Measurement:
-Compliance with EN 61326-1 EN 61010-1 standard
-Connection type: 3P4W(Three Phase four wire)
-Access Method: Via CT
Accuracy:
-Voltage: +0.5%
-Current/Power: +0.5%
-Electric energy: +0.5%
Voltage:
-Nominal Voltage(Un): 220V…240V
-Operating Voltage: 198V ~ 253V
-Limited Voltage:100V ~ 276V
Current:0.015-1.5(6)A
Frequency: 50Hz or 60Hz
Display Interface:
-LCD
-With backlight
LED Indication: Pluse Output
Communications:
-Protocols: ModBus-RTU
-Interface: RS485
-Baud rate: 1200 / 2400/4800 / 9600bps(default) 19200/115200 bps(customizable)
Measured Values:
-Import/Export kWh, kvarh
-Instantaneous kW, kvar, kVA
-Irms, Vrms, Frequency, Power factor,etc
Environmental:
-Operating Temperature:-25°C ~ +55°C
-Storage Temperature:-40°C~ +70°C
-Relative Humidity: ≤95%(non-condensing)
-Atmospheric Pressure: 63.0kPa ~ 106.0kPa
Dimension:
-72mm×100mm×65.5mm
-Mounting Type:DIN35mm
