Shop for CHINT NVF5 NEXT series variable frequency drive

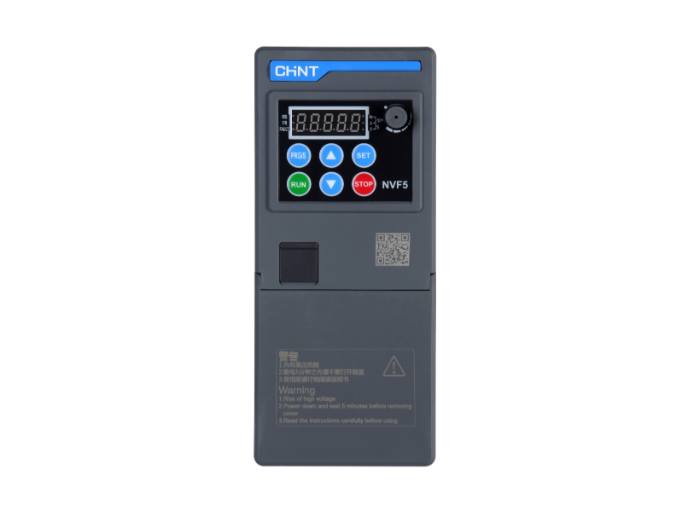

CHINT NVF5 NEXT series variable frequency drive,
is an advance, high-performance motor control solution designe for precision, reliability,
furthermore efficiency. Featuring the latest vector control technology and modular design,
also it delivers exceptional torque response, high-speed accuracy,
in addition intelligent energy-saving performance. With its built-in PLC logic,
moreover multi-protocol communication, and user-friendly interface,
finally the NVF5 is ideal for a wide range of applications—from fans and pumps to complex industrial automation systems.

first Standards: IEC/EN 61800-2, IEC/EN 61800-5-1
second Rated Input Voltage:
- 3-phase 380–480 V AC (±15%)
- Rated Frequency: 50/60 Hz
- Output Frequency Range: 0–800 Hz
next Control Mode:
- Sensorless Vector Control (SVC)
- V/F Control
- Torque Control
- Synchronous Motor Control (optional)
then Starting Torque:
- 200% at 0.25 Hz (SVC)
- Speed Accuracy: ±0.2% (SVC mode)
afterward Overload Capacity:
- Heavy Duty: 150% rated current for 60 s
- Light Duty: 120% rated current for 60 s
- Carrier Frequency: Adjustable from 1–16 kHz
for example subsequently Built-in PLC Function:
- Up to 16-step programmable logic for automation tasks
for instance Built-in Communication:
- RS-485 (MODBUS-RTU protocol)
specifically Optional Communication Modules:
- CANopen, PROFIBUS-DP, EtherCAT, Profinet, Ethernet/IP
to illustrate Control Terminals:
- 8 Digital Inputs
- 2-Analog-Inputs (0–10 V / 4–20 mA)
- 2-Analog-Outputs
- 2-Relay Outputs
- 1 Pulse Input / Output
meanwhile Braking Unit:
- Built-in (≤ 30 kW)
- External braking resistor support for higher ratings
before PID Function:
- Closed-loop control for pressure, temperature, or flow regulation
therefore Energy-Saving Mode:
- Automatic voltage/frequency adjustment for optimized power use
however Protection Features:
- Overvoltage, undervoltage, overcurrent, short circuit
- Overheating, ground fault, and stall prevention
later Display Interface:
- Detachable LCD keypad with real-time monitoring
- Remote operation supported
