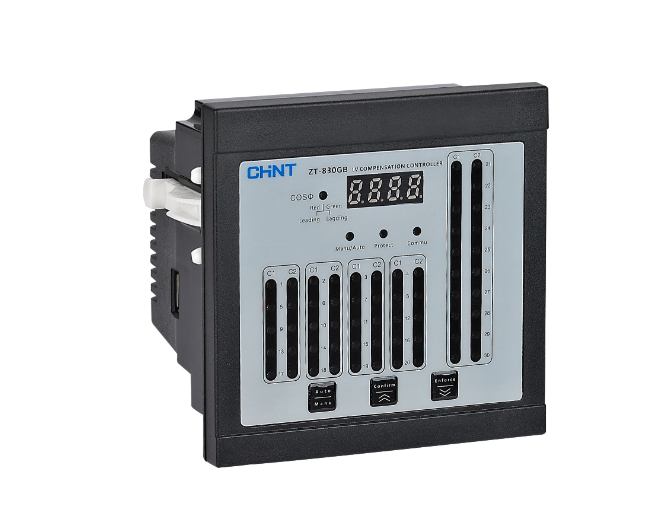

CHINT ZT-830 Series Intelligent Capacitor Controller,
is an advance reactive power compensation controller designe for intelligent low-voltage capacitor systems.
Using a high-precision power acquisition chip and MCU processor,
it provides real-time monitoring and automatic control of intelligent capacitors.
With Modbus-based RS485 communication, LED display,
and multiple protection functions, the ZT-830 ensures accurate compensation,
efficient networking, and enhanced capacitor safety in industrial and commercial power distribution systems.
- Power Supply: AC 380V ±20%, 50Hz ±5%
- Power Consumption: ≤5W
- Measurement Accuracy:
- Voltage ≤±0.5%
- Current ≤±1%
- Power factor ≤±1.5%
- Reactive power ≤±2%
- Networking Capacity:
- ZT-830GB: up to 30 intelligent capacitors
- ZT-830FB: up to 20 simultaneous + 10 phase-splitting capacitors
- Communication Interface: RS485 port, Modbus protocol compatible
- Protection Functions: Over-voltage, under-voltage, under-current, over-temperature, and over-harmonic protection with quick disconnection and capacitor lockout for system safety
- Display & Interface: LED digital display, manual/auto switch, parameter view, and simulation test keys
- Cut-out Size: 113×113 mm
- Compliance Standards: JB/T 9663-2013, DL/T 597-1996
