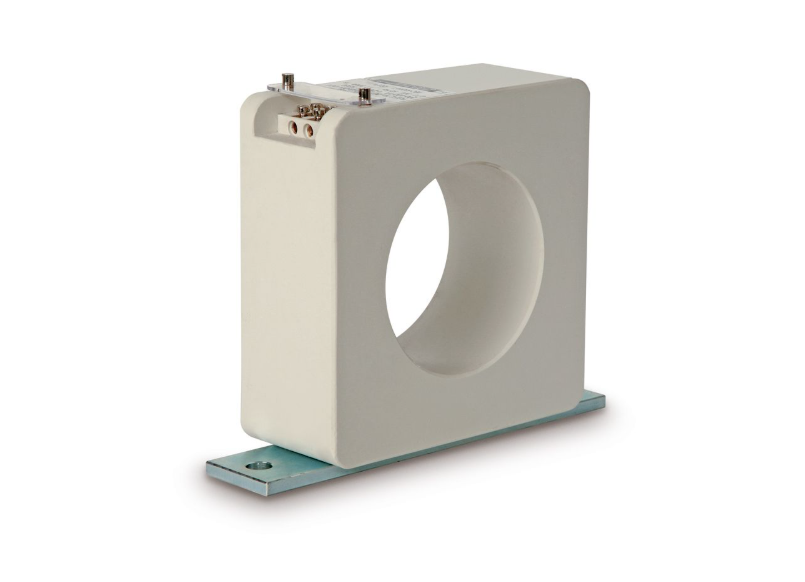

Current transformer TGF 2/4 Cable CT,
- Up to 5’000 A
- Cable-type transformer for measuring and protection
- One piece design, seale with castresin
- Mountig plate is attache at the back
- Secondary terminals plumbable
- Standard: IEC/EN 61869-2
- TGF 4 100/1A & 300/1 A are released for railway application
- Official calibration possible
Technical data
| Highest operating voltage | 0.72 kV |
| Test voltage | 3.0 kV |
| Frequency | 50/60 Hz |
| Secondary current | 5 or 1 A |
| Continuous thermal current | 120 % Ipr |
| Short-time thermal current | 60 Ipr 1s |
