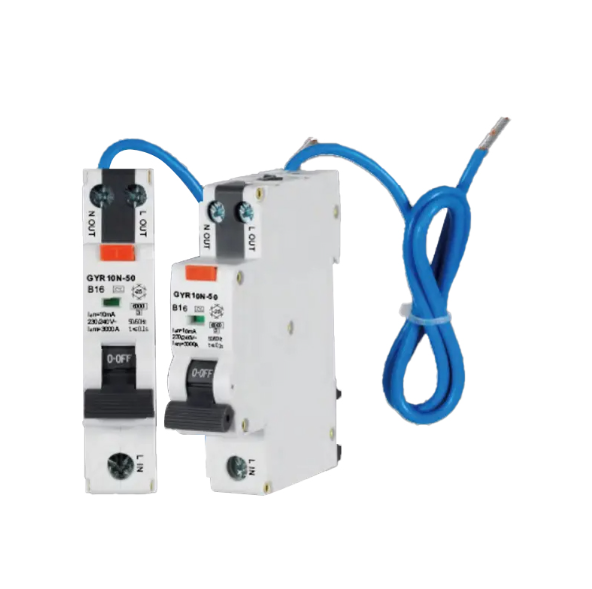

GYR10N-50 RCBO,
Technical Data
Ratedcurrent:6A,8A,10A,13A,16A,20A,25A,32A,40A
Rated voltage:240V(230V)~
Rated frequency:50/60Hz
Number of pole:1P+N
Module size:18mm
Curve type:B&C Curve
Breaking capacity:6000A
Rated residual operating current:
10mA,30mA,100mA,300mA Type Aand AC
Optimum operating temperature:-25℃ to40℃
Terminal-Tightening torque:1.2N-m²
Terminal-Capacity(top):16mm²
Terminal-Capacity(bottom):16mm
Electro-mechanical endurance:4000 cycles
Mounting:35mm DinRail
Line and Load reversible:
Suitable Busbar:PIN Busbar
