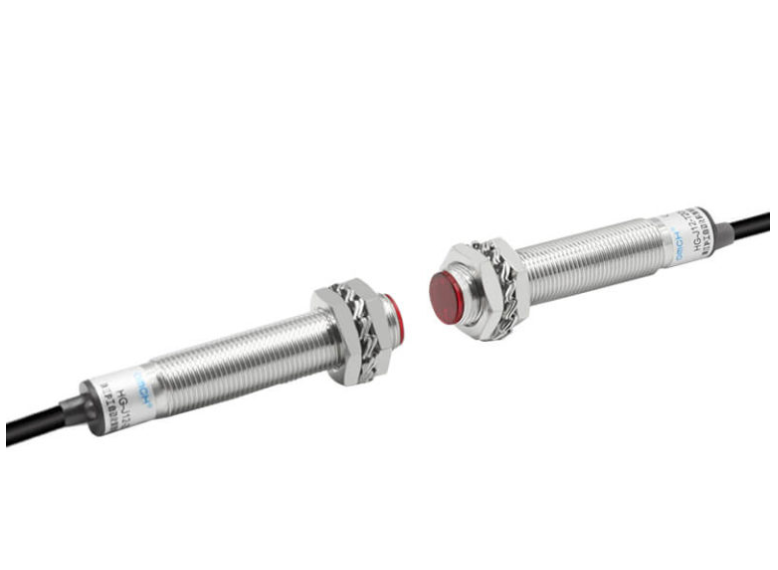

HG-J12-T20P1-20L Laser Proximity Sensor,
| Type and Specification | |
|---|---|
| Model | HG-J12-T20N1-20L |
| HG-J12-T20N2-20L | |
| HG-J12-T20P1-20L | |
| HG-J12-T20P2-20L | |
| Thread size | M12*60mm |
| Detection distance | 20mm |
| Detection of spot size | 4mm |
| Detection mode | through beam type |
| Light source | Infrared ray LED (880nm)The laser beam is invisible. The laser spot is visible. |
| Output mode | NPN NO, NPN NC, PNP NO, PNP NC |
| Power supply | 10-30VDC |
| No-load current | ＜10mA |
| Maximum load current | 150mA |
| Leakage current | ＜0.01mA |
| Voltage drop | ＜1V |
| Switching frequency | 120Hz |
| Response time | 0.1ms |
| Switching hysteresis | ＜15% (sr) |
| Repeat accuracy | ＜1.0% (sr) |
| Protection class | IP67 |
| Environment humidity | 35-95% |
| Operating temperature | -5~+50℃ (23~122℉) |
| Temperature drift | ＜10% (sr) |
| Short circuit protection | Yes |
| Indicator light | Yes |
| Housing material | 304 stainless steel |
| Connection method | Direct lead wire |
| Cable length | 2m |
