Construction
Material:
-
Body: 1.5mm sheet steel
-
Mounting plate: 2mm sheet steel
-
Door: 2.0mm sheet steel
Surface finish:
-
Body and door: Epoxy polyester powder coating textured finish
-
Mounting plate: Epoxy polyester powder coating flat finish
Color:
-
Body and door: RAL7032 RAL7035
-
Mounting plate: RAL 2000 OR galvanized steel

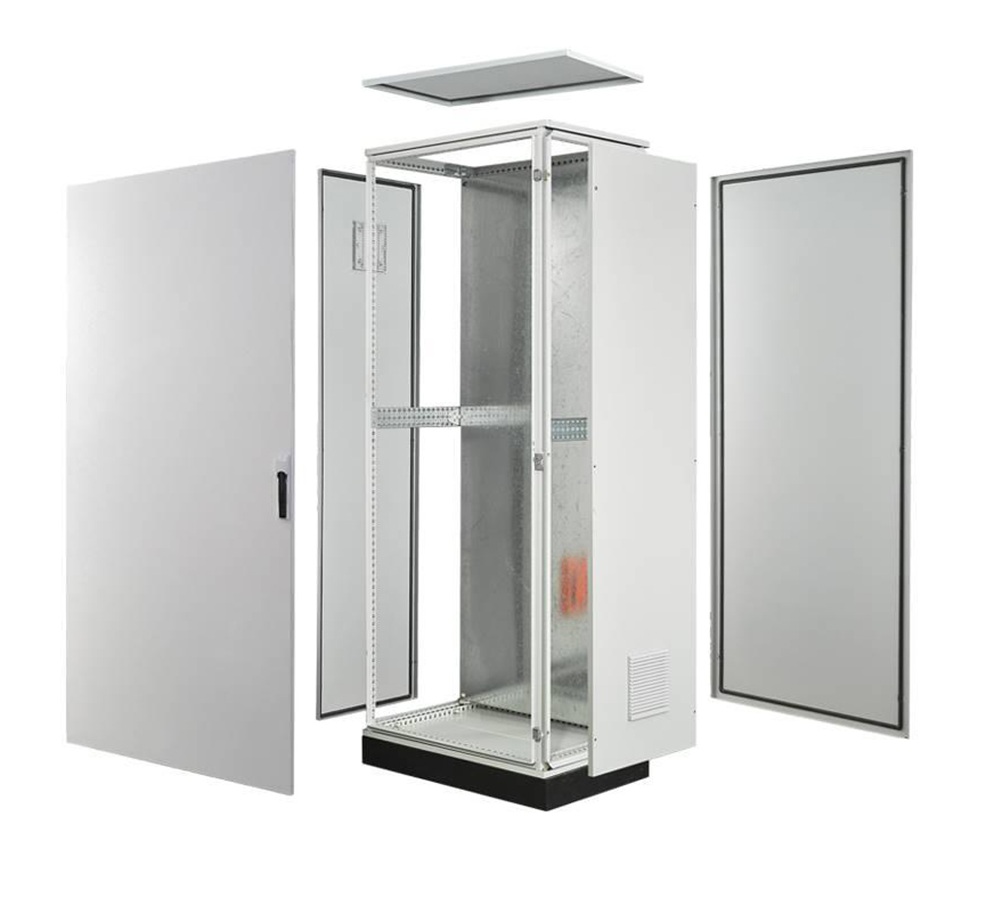

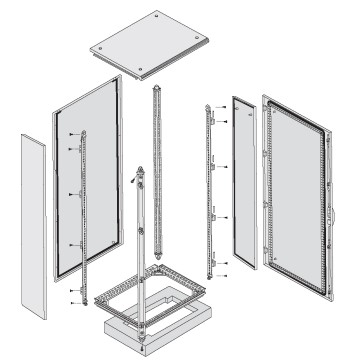

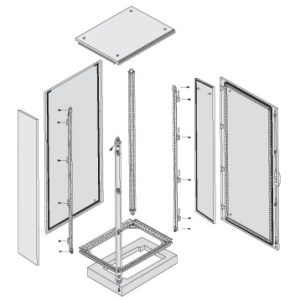

Supply
The vertical upright column comprises hinge, lock elements, side fixing block and are all installed.
-
Welded top
-
Welded base
-
Mounting plate slide rail
-
Mounting plate mounting bracket
-
Ordinary door with lock
-
Ordinary back panel
-
Side panel: 2 pieces side panels with accessories
