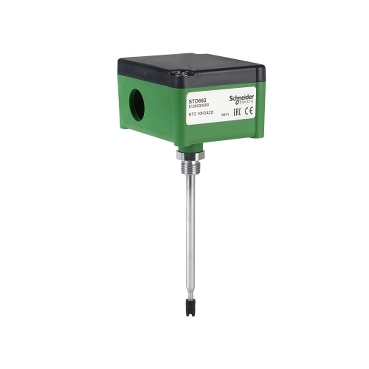

Schneider STD660 Duct temperature sensor 5126030000
The STD660 temperature sensor is intended for air duct mounting, and has
a telescopic probe extendable from 100 … 300 mm (3.94 … 11.81 in.). The
STD660 housing is equipped with a Ø 20 mm (0.79 in.) cut-out for the cable.
A 20 mm (0.79 in.) conduit gland nut and a mounting flange are supplied with
the product.
Accuracy: See Appendix A, table F
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A

Specifications

Head
range of product STANDARD
product or component type Sensor
type of measurement Temperature
device application Cable duct
IP protection degree IP65
location Installation space
mounting support Cable duct
depth 45 mm
height 66 mm
width 85 mm
output type Resistive output
colour Black and green
Sensor type 10 kOhm thermistor with resistor and 11 kOhm shunt temperature
target country Europe
Asia and the Pacific.
Complementary
diameter Probe: 6 mm
material Polyamide: housing
measurement accuracy 0…25 °C +/- 0.3 °C
Environment
product certifications CE
measuring range – 40…130 °C
Packaging unit
Unit type of packaging 1 PCE
Number of units in package 1 1
packaging_1_height 20.4 cm
packaging_1_width 9.6 cm
packaging_1_length 7 cm
packaging_1_weight 200 g
