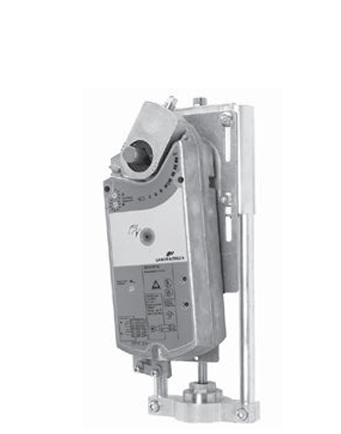

Siemens 599-03609 Electro-Mechanical Rack and Pinion Actuator,
The Flowrite Electronic Rack and Pinion is designe for use,
with 1/2- to 2-inch Flowrite two- and three-way valves with a 3/4-inch stroke.
A linkage fastens the actuator and the valve body together,
and transforms the rotary movement of the actuator output shaft to the linear motion require to position the valve.
Applications
The Flowrite Valves and Valve Actuators are use to
control water and glycol solutions to 50 percent in small
to large air handling units and central plant applications.
