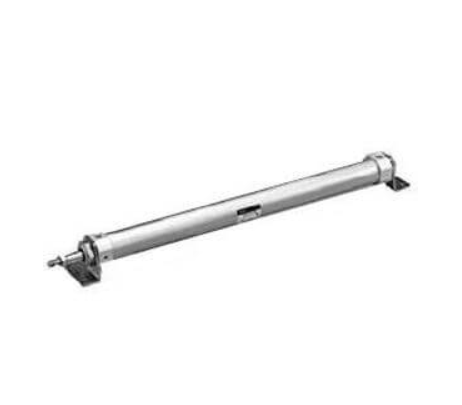

SMC 10/11-REC Sine Cylinder Clean Room,
The transportation of delicate items often requires greater control of cylinder acceleration,
and deceleration than is afforde by traditional air cushions. For this reason,
SMC has developed the REC sine cylinder.
The term “sine cylinder” is derive from the shape of the velocity curve at both ends of stroke.
This control is achieve with the addition of two grooves on each cushion spear,
which results in a more gradual initial acceleration or deceleration and smooth transition to or from full speed operation.
To accomplish this type of motion with a traditional cylinder typically requires extensive external flow control. REC is a repairable basic cylinder.
- Clean room
- Bore sizes: 20, 25, 32, 40
- Stroke: 150 to 1000mm
