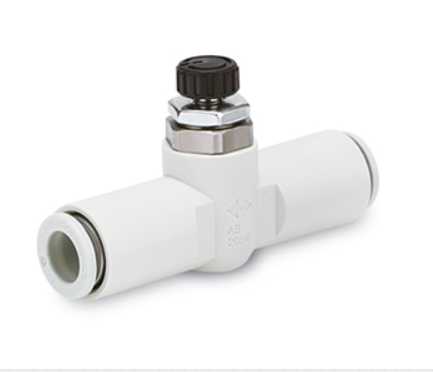

SMC AS-FM Speed Controller Low Speed One-touch In-line Resin Body,
Where finite adjustment is require to control actuators at very low speeds such handling fragile material,
or smooth process control the “-FM” series has been designe exclusively to meet this requirement.
Effective orifice area has been reduced to 1/10th of standard series,
but still retains 10 turns of the adjustment needle,(20 turns on the M5 size).
This series comes complete with One-Touch fittings and is available in elbow and universal style construction.
Currently available in Metric to suit tube sizes from 3.2mm to 10 mm OD, and thread sizes from M5 to ¼ R(PT)
- In-line type speed controller with one-touch fittings
- Designed for low speed operation
- All brass parts are electroless nickel plate
- Accepts metric or inch size tubing
- Meter-in and meter-out types easily determined by the flow
direction symbol on the resin body
