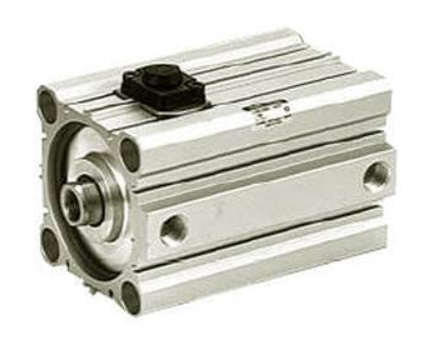

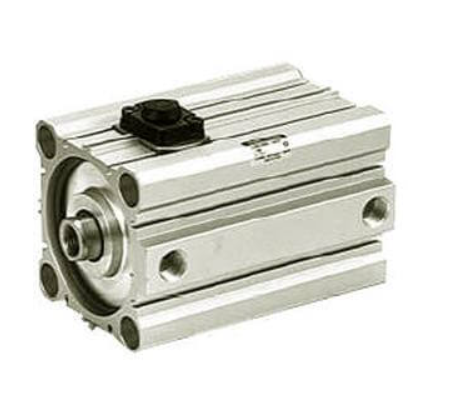

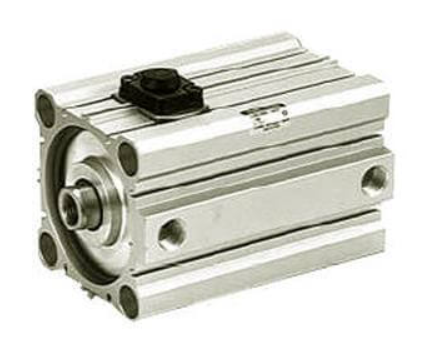

SMC C(D)BQ2 Compact Cylinder Double Acting Single Rod End Lock,
End lock version of the standard double acting, single rod version of the CQ2 compact cylinder.
End of stroke locks are included can be used to hold a load in case of a loss of air pressure.
The CQ2 is available in bore sizes from 20mm to 100mm.
It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.
- Compact, double acting, single rod, end lock
- Bore size (mm): 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke (mm): 10 through 100
- Port thread types: Rc, NPT, G
- Auto switch capable
