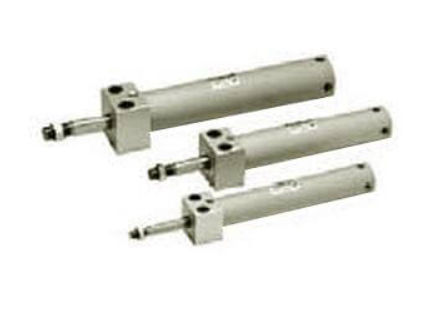

SMC C(D)G1KR-Z Air Cylinder Non-rotating Double Acting Single Rod Direct Mount,
Series CG1-Z precision air cylinder has 8 bore sizes and can meet any application need.
The tube is impact extruded aluminum to produce an extraordinarily smooth finish,
allow low break-away pressure and smooth stroke action. Various mounting bracket options are available. Female piston rod threads are available as a standard option. Auto switch capable.
- Double acting, single rod, non-rotating, direct mount
- Bore size (mm): 20, 25, 32, 40, 50, 63
- Standard stroke (mm): 25, 50, 75, 100, 125, 150, 200, 250, 300
- Auto switch capable
- Variety of lead wires and prewired connectors
