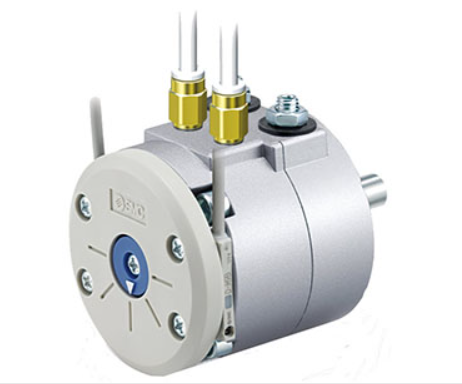

SMC C(D)RB Rotary Actuator Standard Type,
Series CRB rotary actuator is available in 10, 15, 20, 30, and 40 bore.
The CRB series is available in either 90°, 180°, and 270° rotation angle in single vane, 90°,
and 100° rotation angle in double vane configuration.
The lightweight design features a compact body with a built-in angle adjuster unit and auto switch unit.
Rotating angle can be easily checked using the chamfered position of the shaft. The new integrated auto switch unit is compatible with D-M9 type auto switches.
- Overall length: 44% shorter, Weight: 48% lighter
- Same side piping, wiring, and angle adjustment
- Easy-to-adjust start and end position angle adjustment bolts (±10°)
- Compatible mounting with CRB2 series auto switch units
- Various shaft types available
- RoHS compliant
