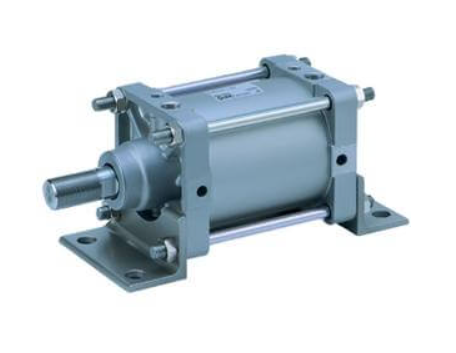

SMC C(D)S2 Air Cylinder Double Acting Single Rod,
Series CS2 double acting, single rod, non-lube air cylinder.
Aluminum die-cast is used for both the rod and head covers,
which means a maximum weight reduction of approximately 50% (basic 125mm bore, 100mm stroke).
This series is available in bore sizes 125mm, 140mm, 160mm, 180mm, 200mm, 250mm,
and 320mm with maximum strokes up to 1600mm (depending on the mounting configuration). Air cushions are standard on both ends. Other options include auto switches, rod boots, and Rc, NPT or G thread types.
- Double acting, single rod
- Bore size (mm): 125, 140, 160, 180, 200, 250, 320
- Available port threads: Rc, NPT, G
- Optional rod boots
- Auto switch capable
