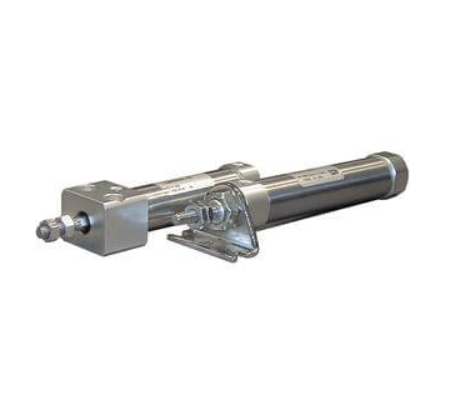

SMC CM2-Z Double Acting Single Rod Air Cylinder Temperature Resistant Options,
Series CM2-Z stainless steel cylinders with temperature options offer the same compact,
lightweight and high performance as the standard CM2-Z.
The piston seal and rod seal design provides excellent life.
The CM2-Z series delivers extra flexibility including the option of male and female rods.
Where space is at a premium, you can select a female rod end (up to 29 mm shorter) and/or boss-cut type (up to 16 mm shorter).
Rubber bumpers are standard. The CM2-Z series offers a variety of mounting options.
- Double acting, single rod cylinder
- High temperature (XB6) Bore sizes (mm) 20, 25, 32, 40
- Low temperature (XB7) Bore sizes (mm) 20, 25, 32, 40
- Low temperature (XB7) ambient range -40 to 70°C
- High temperature (XB6) ambient range -10 to 150°C
