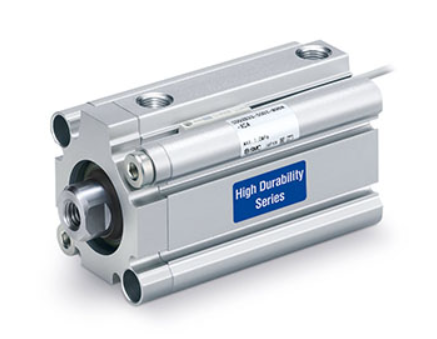

SMC CQ2-XC4* Dust Resistant Compact Cylinder Double Acting Single Rod,
Dust-resistant double acting, single rod version of the CQ2 compact cylinder.
The CQ2-XC4* is available in bore sizes from 20mm to 63mm.
The CQ2-XCA/B/C offers superior durability and environmental resistance compared to standard products.
This cylinder can be seleted according to application.
It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.
- Up to 6 times more durable in dusty environments
- Applicable Powder particle size: 20 to 100 microns
- Double acting single rod, compact cylinder
- Bore sizes (mm): 20, 25, 32, 40, 50, 63
- Standard stroke range (mm): 5 to 100
- Port threads: M (20, 25 bore); Rc, NPT or G (32 to 63)

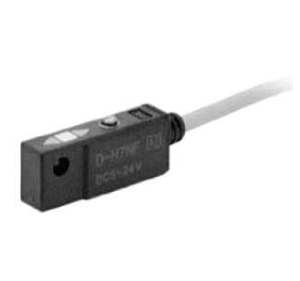

- Auto switch capable
