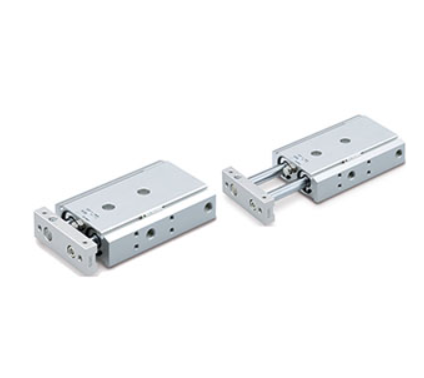

SMC CXS2M Dual Piston Rods Slide Bearing,
The CXS series is a dual piston actuator with non-rotating accuracy ±0.1°. The CSXM slide bearing type provides lateral stability protecting it from side load impacts. Double piston construction provides twice the output force. The CXS2 series offers 7 times more allowable kinetic energy and 2.6 times more maximum piston speed compared to the existing CSX series.
- Bore sizes: 6, 10, 16, 20, 25, 32mm
- Max. standard stroke increased
- Non-rotating accuracy: ±0.1°
- Stroke adjustment range: 0 to -5mm
- Auto switch capable
