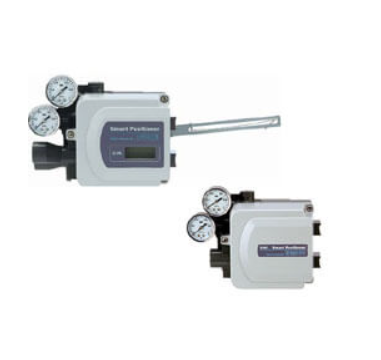

SMC IP8*01 Lever/Rotary Type Smart Positioner,
Smart positioners are designe to be paired with process control valves.
The IP8001 lever type is for stem type valves, typically with diaphragm actuators.
The IP8101 rotary type is for rotary valves with oscillating actuators.
Each positioner serves as the source of pneumatic actuating pressure and as a feedback device for the actuator position and valve shut off.
Buttons and an LCD display are use for calibration and to change parameter settings.
Operation can set for positive or reverse direction relative to current input signal.
Different levers are available, depending on valve stroke (8001) or mounting variations (8101).
Smart positioners are suitable for application in industries such as pulp and paper, food and beverage, waste water treatment.
- IP65 dustproof and waterproof rating
- Analog gauges for supply and output pressures
- Easy zero point and span adjustment
- 2 alarm outputs (option)
- 4 to 20 mA DC output (option)
- HART transmission function (option)
- 1/4 port size with Rc, NPT, or G threads
