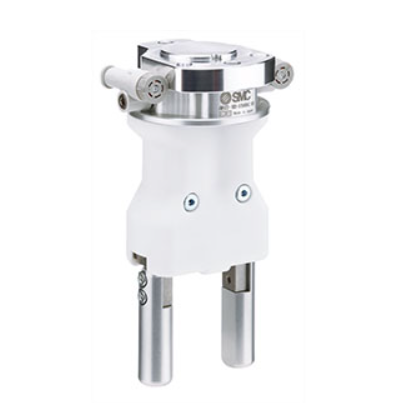

SMC JMHZ2-X7500-KR Air Gripper Unit for Collaborative Robots,
JMHZ2-X7500-KR is a pneumatic 2-finger gripper designed for collaborative applications and compatible with humanoid dual-arm robot.
JMHZ2-X7500-KR is an air gripper that realizes high rigidity and high precision due to its guide-integrated construction.
The unit includes an integrated speed adjustment mechanism and split protective cover for easy air gripper maintenance. Attachment, protective cover, and auto switches are also selectable.
- Bore size: 16mm
- Compatible with humanoid dual-arm robot
- Weight: 350g (12.4oz)
- Gripping force: External: 32.7 N, Internal: 43.5 N
- Action: Double acting
- Opening/Closing stroke: 10mm
- Standards: ISO9409-1-50-4-M6
