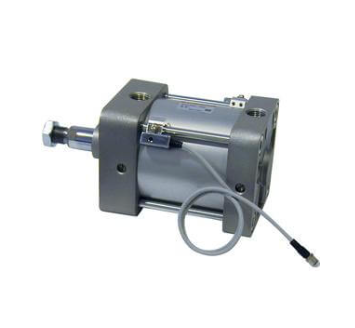

SMC NC(D)A1 NFPA Air Cylinder Double Acting Single,
Rod Double Rod, Non-Rotating, Oversized Rod, Large Bore w/Options,
Series NCA1 medium duty tie rod cylinders are NFPA interchangeable,
have a crimped piston rod assembly, are pre-lubricated and available in 11 mounting styles.
Bore sizes range from 1.5 to 4 inches.
The NCA1 expanded line of medium duty cylinders has bore sizes ranging from 5 to 8 inches. The single rod model is available in 22 mounting styles.
- Standard and non-rotating double acting and double rod
- Oversized Rod
- Large Bore
- Bore sizes: 1½, 2, 2½, 3¼, 4″, 5″, 6″, 8″
- Strokes from 1/2″ to 80″
- NFPA Standard Mounts: basic, foot, flange, clevis, trunnion, etc
- NFPA Standard Rod Ends: small male, short female, flanged, etc
- Variety of switches and a variety of lead wire lengths
- Optional air cushions and rod boots
