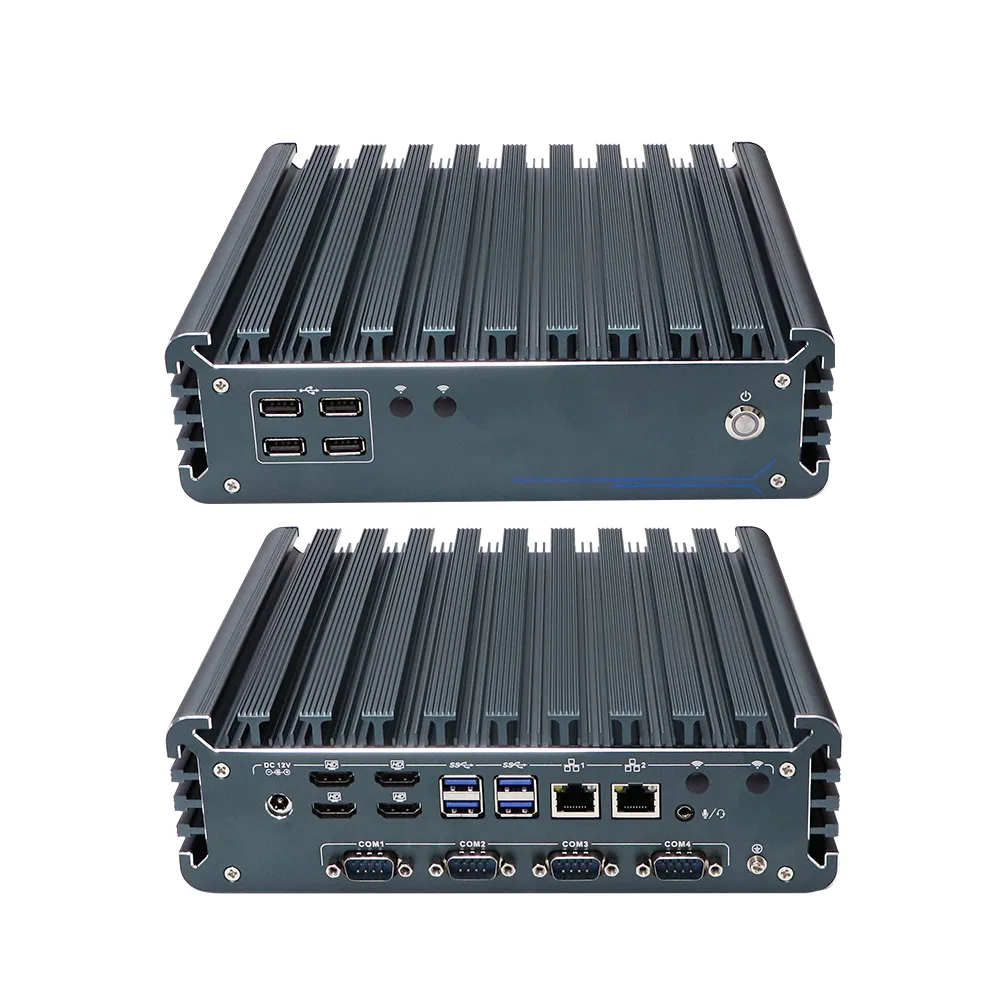

12th Gen Industrial Computer Solutions For Automation,
with Onboard Alder Lake Intel core i3 i5 i7processor,
and Max.2 DDR4 3200 64GB memory slots.
| System Parameter | |
| Model | IBOX-3226 IIndustrial Computer Solutions |
| Processor | Intel-Core-i3-1215U , with (6 Cores 8 Threads, Turbo 4.4 GHz) |
| Intel-Core-i5-1235U, with（10 Cores 12 Threads, Turbo 4.4 GHz) |
|
| Intel-Core-i7-1255U, with (10 Cores 12 Threads, Turbo 4.7 GHz) |
|
| Memory | Support 2*DDR4 3200MHz SODIMM memory slot， Max 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Iris(R) Xe Graphics |
| Display port | 4*HD-MI display port |
| Storage | 1*M.2 2280 slot (supports NVME protocol), 2*2.5-inch HDD |
| Expansion | 1 x M.2-M-Key-2280 , slot (support NVME) 1 x M.2-E-Key-2230, 1 x M.2-B-Key-3042/3052, |
| Expansion Ports | Expansion slot （The standard is without it）, : 2 COM/1 Lan Port (please consult the pre-sales engineer , for details on expanding multiple interfaces) |
| Other Function | Auto power on when there is electricity, Timing boot,Wake on LAN, PXE boot,Watchdog（0-255 level） |
| I/O | 4 x USB2.0, 1 x Power Switch |
| 1 x DC , 4 x HDMI , 3 x USB3.0, 1 x USB2.0, 2 x Intel LAN 1x 2-in-1 Audio , 4 x COM, |
|
| Network | 2 x RTL8111H 10M/100M/1000M LAN |
| Power Supply | DC 12V |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation，Medical， Logistics Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | Dark gray (Color can be customized) |
| Material | High quality all aluminium alloy with hard anodized surface， Fan intelligent heat dissipation |
| Size | 230 * 200 * 68 mm |
| Weight | 2.64 KG |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industrial SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
