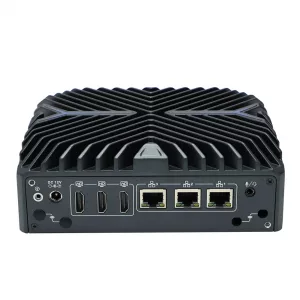

Fanless Industrial Edge AI Computing IPC Intel Tiger Lake Dual core processor 1xDDR4 3200MHz Ram slot Max 32GB
| System Parameter | |
| Model | IBOX-3126 Industrial IPC |
| Processor | Intel-Core-i3 1115G4, and（Dual core 4 threads，3.0 GHz，Turbo 4.1GHz） |
| Intel-Core-i5 1135G7, and（Quad core 8 threads，2.4 GHz，Turbo 4.2 GHz，8MB cache） |
|
| Intel-Core-i7 1165G7, and（Quad core 8 threads，2.8 GHz，Turbo 4.7 GHz，12MB cache） |
|
| Memory | Support 1*DDR4 3200MHz SODIMM memory slot， Max 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel HD Graphics /Intel Iris(R)Xe Graphics |
| Display port | 1*HD-MI FHD Display port， 1*DP（Support Synchronous or asynchronous display） |
| Storage | 1* M.2 slot(support NVME),1*2.5 inch HDD |
| Expansion | 1*M.2-M-Key 2280 slot（support NVME）
1*MINI PCIE slot（support WIFI/BT） 1*M.2-B-key slot 3042/3052（support 4G），with SIM card slot |
| Expansion Ports | Can be expand（The standard is without it）：2*USB2.0 |
| Other Function | Auto power on when there is electricity, Timing boot,Wake on LAN, PXE boot,Watchdog（0-255 level） |

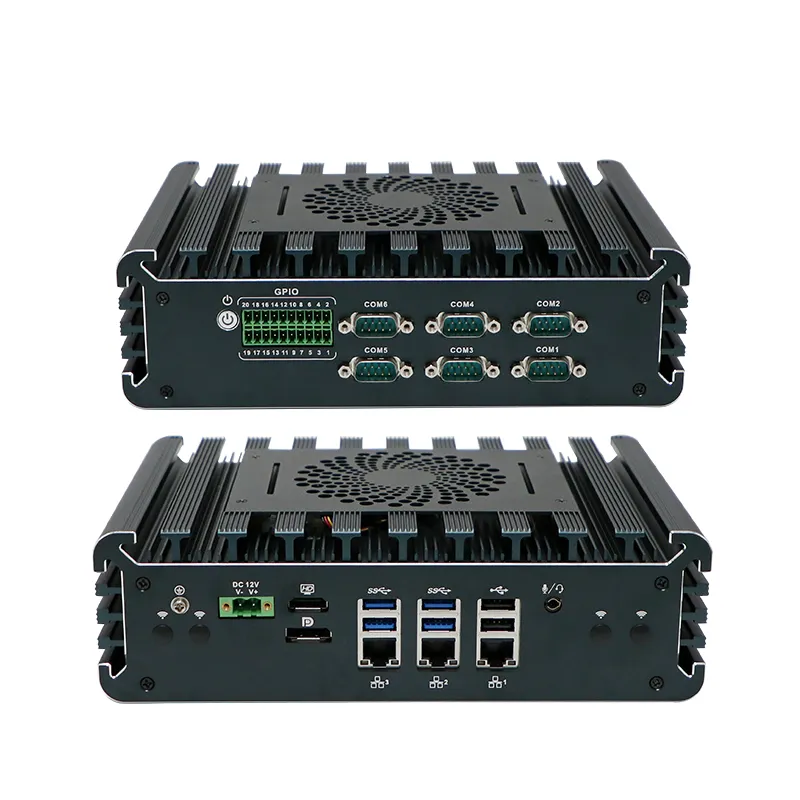

| I/O | 1*Power button，1*16 pins GPIO Phoenix terminal， 6*COM ports（COM1&COM2 can be option RS232/RS485) |
| 1*2Pin Phoenix terminal，1*HD-MI， 1*DP，4*USB3.0， 2*USB2.0,3*Intel I225-v 2.5G LAN， 1*audio&Mic |
|
| Network | 3*Intel i226-V 2.5G LAN |
| Power Supply | DC 12V |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation，Medical， Logistics Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | Black (Color can be customized) |
| Material | High quality all aluminium alloy with hard anodized surface， Fan intelligent heat dissipation |
| Size | 230 * 152 * 68 mm |
| Weight | 2.4KG |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industrial SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
