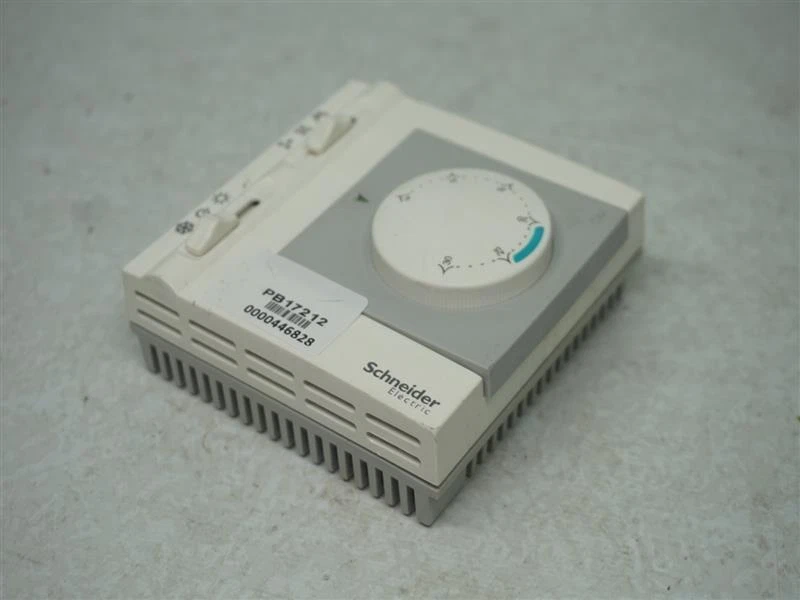

Schneider Electro-Mechanical Thermostats TC100 Series TC103-3A2 FCU Thermostat for 2-position on/off
actuator (2-wire)
The TC100 Series of fan coil thermostats are optimized for office building,
hotel and residential applications. The TC100 Series can be used for 2-pipe
or 4-pipe applications. Their simple design makes them suitable for any
contemporary building. They are both easy to operate and install.
Features
• Set-point, fan speed and mode control
• Easy to install and maintain
• Green set-point marking indicates ideal range for energy efficiency
Functions
Set-point Adjustment – The set-point adjustment dial allows users to select
a desired set-point for the space. The green set-point marking provides the
user with the ideal range to optimize energy efficiency. The set-point range
can also be limited by locking the set-point range.
Fan Speed – Users can select between High, Medium and Low fan speeds
by adjusting the fan speed switch.
Mode Control – Users can switch modes from heating to cooling, or turn the
thermostat off by adjusting the mode switch.
TC103-3A2C
TC103-3B2
TC103-3B2C
TC103-3A4
