Schneider STX520-200 Immersion Temperature Sensors 2M CABLE 5123320000

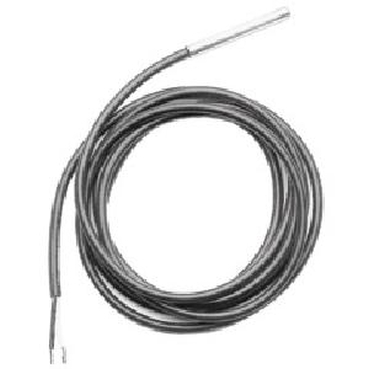

The sensor, which is made of stainless steel, is delivered with a 2 m (6.56 ft.)
or 4 m (13.12 ft.) cable PVC sheathed overall. STX520 is intended for
measuring water temperature in heating applications, mounted in a
well/pocket.
Accuracy: See Appendix A, table E
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A
5123322000 STX520-400

Specifications

Main
Range of product STX520
Product or component type Sensor
Type of measurement Temperature
IP degree of protection IP67
Net weight 0.08 kg
Ambient air temperature for operation -40…120 °C
Relative humidity 0…90 %
Complementary
Material PVC (polyvinyl chloride): cable
Stainless steel: sensor
Time constant 6 s
Number of cables 1 <2 m
Environment
Temperature probe type NTC 10000 Ohm at 25 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.143 cm
Package 1 Width 0.381 cm
Package 1 Length 0.559 cm
Package 1 Weight 81.647 g
Contractual warranty
Warranty 18 months
