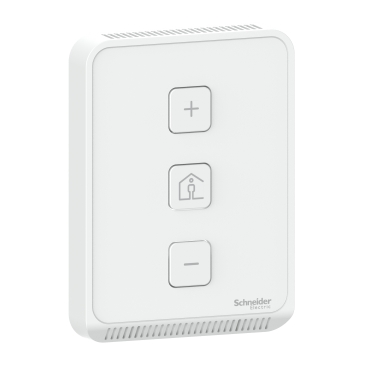

Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Override Setpoint – Sensor Base not Included SXWSC3XSELXX

Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Override Setpoint – Sensor Base not Included SXWSC3XSELXX

Add to wishlist
Category:
Brand:
Share:

Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Override Setpoint – Sensor Base not Included SXWSC3XSELXX
SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 sensor bus that provides communication and power from the SmartX IP controller.
SXWSC3XSELXX
SXWSC3PSELXX
SXWSC3XSELXW
SXWSC3PSELXW
SXWSC3XSELXB
SXWSC3PSELXB

Specifications

Main
Range SpaceLogic
Product or Component Type Cover
Product name SmartX Living Space Sensor
Device Application HVAC
Temperature control
Fan speed controller
Product certifications CE conforming to EN 61000-6-3
RCM
EAC
ICES-003
Display Type Without Display
Flame Retardance UL94-V0
IP Degree of Protection IP20
Location Living Space
Depth 0.8 in (20 mm)
Height 4.5 in (115 mm)
Width 3.3 in (85 mm)
Ambient air temperature for operation 32…122 °F (0…50 °C)
Standards UL 916
FCC Part 15 class B
Color White
Device presentation Cover plate
Surface Finish Matte
Local signalling 1 red, green and blue LED modulating heating or air-conditioning application
Complementary
Material ABS (acrylonitrile butadiene-styrene) GF10 FR
Function Available Override switches
Setpoint adjustment
Supply Base
Connections – terminals Bus terminal back)
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
EcoStruxure Building Operation SmartX Living Space Sensor base unit
Ordering and shipping details
Category US1BMS180230
Discount Schedule BMS1
GTIN 3606489507305
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 5.59 in (14.2 cm)
Package 1 Width 3.86 in (9.8 cm)
Package 1 Length 1.89 in (4.8 cm)
Package weight(Lbs) 4.2 oz (120 g)
Unit Type of Package 2 S02
Number of Units in Package 2 14
Package 2 Height 5.91 in (15 cm)
Package 2 Width 11.81 in (30 cm)
Package 2 Length 15.75 in (40 cm)
Package 2 Weight 4.522 lb(US) (2.051 kg)
