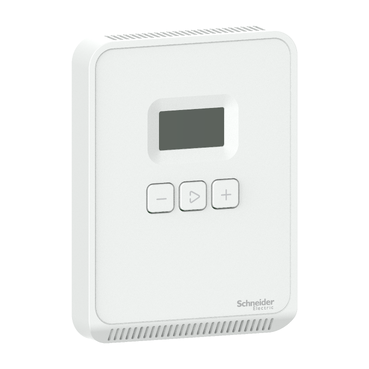

Schneider SXWS SmartX temperature sensor , LCD display, setpoint override, cover included SXWSATXXXSLX

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller.
SXWSATXXXSLW
SXWSATXXXSLB

Specifications

Main
Product or Component Type Sensor
Type of Measurement Temperature
Device Application HVAC
Temperature control
Fan speed controller
Display size 30 x 17 mm
Flame Retardance UL94-V0
IP Degree of Protection IP20
Location Living Space
Depth 0.9 in (24 mm)
Height 4.5 in (115 mm)
Width 3.3 in (85 mm)
Output Type SmartX Sensor Bus
Standards UL 916
FCC Part 15 class B
Color White
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Relative Humidity 0…95 %
Sensor Type Transmitter
Surface Finish Matte
Product name SmartX Living Space Sensor
Function Available Override switches
Setpoint adjustment
Product Specific Application Cooling
Heating
Range SpaceLogic
Complementary
Max power consumption in W 2 W
Information Displayed Temperature
Operating mode
Heating/cooling symbol
Device presentation Complete product
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Control type + button
– button
Present/absent symbol button
Local signalling 1 red, green and blue LED modulating heating or air-conditioning application
Material ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage 24 V DC
Display type LCD display
Communication port support RJ45
Environment
Temperature setting range 32…122 °F (0…50 °C)
Measurement range 0…50 °C temperature
Product certifications CE conforming to EN 61000-6-3
RCM
EAC
ICES-003
Ordering and shipping details
Category US1BMS180230
Discount Schedule BMS1
GTIN 3606489507275
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.01 in (5.1 cm)
Package 1 Width 3.82 in (9.7 cm)
Package 1 Length 5.63 in (14.3 cm)
Package weight(Lbs) 6.4 oz (181.5 g)
