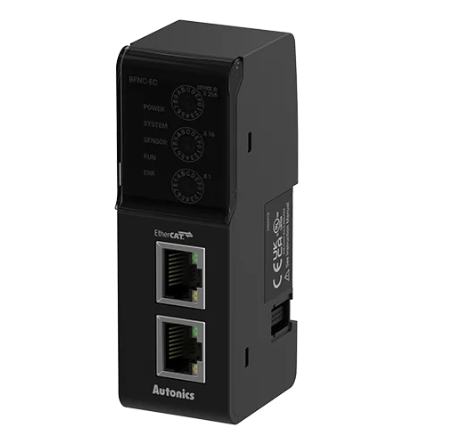

AUTONICS BFNC-EC,
Data sheet Print
| Display | Status indicator × 5 |
|---|---|
| Communication | EtherCAT |
| Power voltage | 10 – 30 VDC (ripple P-P: ≤ 10 %) |
| Power supply | Power connector (3-pin) |
| Max. expansion Amp. units | ≤ 16 units |
| Current consumption | ≤ 300 mA (10 VDC), ≤ 200 mA (30 VDC) |
| Amp. allowable current | Max. 2A |
| Amp. connection | Via side connector |
| Unit weight (packaged weight) | ≈ 81 g (≈ 125 g) |
| Protection circuit | Reverse power protection circuit, surge protection circuit |
| Insulation resistance | ≥ 20 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) |
| Installation | DIN rail 35 mm |
| Protection structure | IP20(IEC standard) |
| Material | Case, cover: PC |
