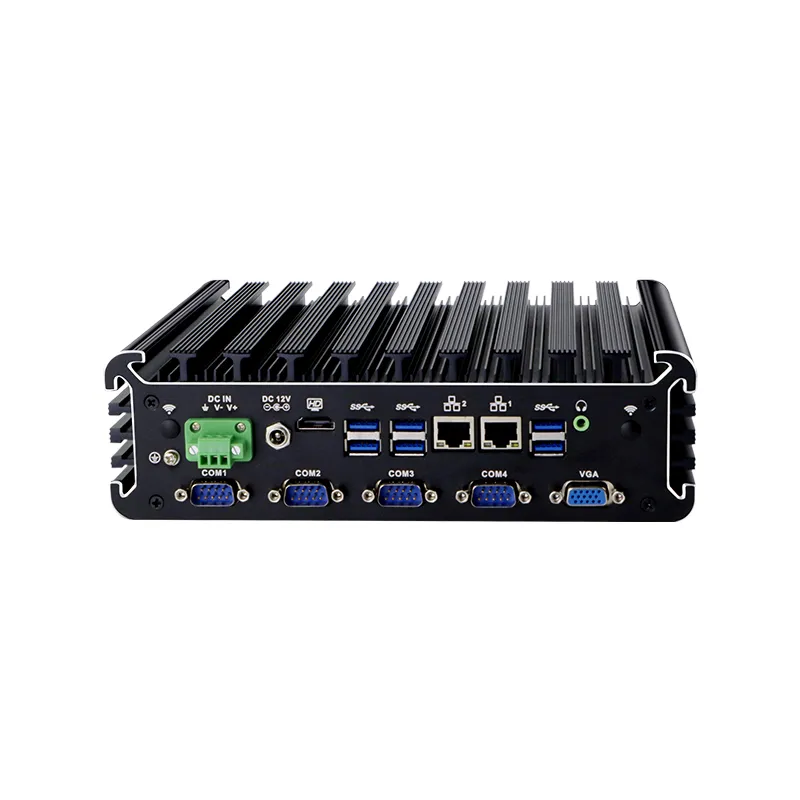

11th gen Industrial Embedded PC Tiger Lake Core i3/i5/i7 processor Fanless Adopt Intel Celeron 6305E Core i5-1135G7 Core i7-1165G7 Processor
| System Parameter | |
| Model | IBOX-3026 11th gen Fanless PC |
| Processor | Intel Celeron 6305E, with（Dual core dual threads，1.8 GHz，4MB Cache） |
| Intel Core i5-1135G7, and（Quad core eight threads，2.4 GHz，Max turbo 4.2 GHz，8MB Cache） |
|
| Intel Core i7-1165G7, olso have（Quad core eight threads，2.8 GHz，Max turbo 4.7 GHz，12MB Cache） |
|
| Memory | Support 1*DDR4 2666/3200 SODIMM Memory Slot， Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Iris(R)Xe Graphics Core graphics card |
| Display port | 1*HDMI，1*VGA, 【Support synchronous or asynchronous dual display】 |
| Storage | 1*M.2 2280 slot，1*2.5” HDD |
| Expansion | Support 1*M.2 M-Key 2280 slot, with（Support SATA Protocol）; Support 1*MINI PCIE Slot, 1* M.2 E-Key 2230 slot（support WIFI/Bluetooth） |
| Expansion Function | Expansion Ports（Standard version doesn’t include these ports)： GPIO（8 Input 8 Output）、1*USB2.0 |
| Other Function | Auto power on when there is electricity、 Timing boot、Wake on LAN、 PXE boot、Watchdog（0～255 level） |
| I/O | 2*USB2.0，2*COM（COM5 RS232, COM6 RS485)， 1*Power Switch |
| 2*Intel 1000 LAN，6*USB3.0，1*HDMI，1*VGA， 1*Audio,4*RS232 COM（COM1 RS232/RS422/RS485 optional）， 1*DC，1*3pinpower supply phoenix connector， |
|
| Network | 1* Intel i211-AT,1* i219-LM 10/100/1000M LAN |
| Power Supply | DC 9V ～ 36V wide voltage Input |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation，Medical， Logistics Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | BLACK (Color can be customized) |
| Material | Aluminum alloy chassis |
| Size | 230*166*68mm |
| Weight | 2.2KG |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
