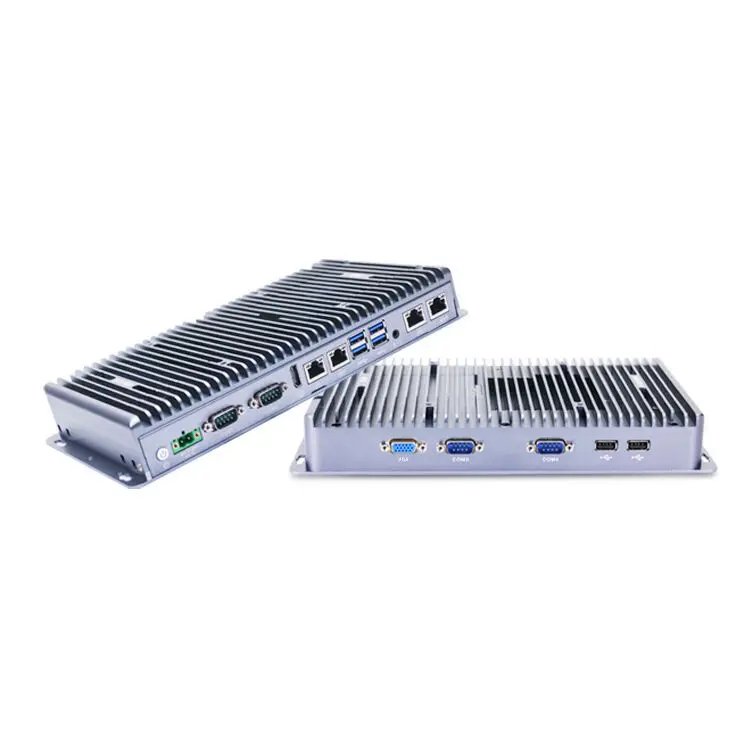

Fanless Industrial PC with Linux All aluminum alloy structure Adopt Intel 8th 10th Core i3 i5 i7 Processor
| System Parameter | |
| Model | IBOX-3046 Industrial Mini PC |
| Processor | Intel-Celeron 4205U, and（Dual core dual threads，1.8Ghz，2MB Cache） |
| Intel-Core-i3-10110U, with (Dual core four threads,2.10 Ghz, Max-turbo-4.1 Ghz, 4MB Cache) |
|
| Intel-Core-i5-8265U, and（Quad core eight threads，1.6Ghz，Max-turbo-3.9Ghz，6MB Cache） |
|
| Intel-Core-i7-10810U, (Six core twelve thread, 1.10 GHz, Max-turbo-4.9 GHz, 12MB cache) |
|
| Memory | Support 1*DDR4 2400/2666 SODIMM Memory Slot， Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel UHD Graphics |
| Display port | 1*HDMI，1*VGA, with【Support synchronous or asynchronous dual display】 |
| Storage | 1*M.2 2280 slot，1*2.5” HDD， Support RAID 0/1 |
| Expansion | Support-1*M.2 M-Key 2280 slot, （Support SATA Protocol）; Support-1*MINI PCIE Slot, （WIFI/3G/4G Optional; choose one from three）， embedded SIM Slot |
| Expansion Function | Expansion Ports：GPIO（8 Input 8 Output）、 2*COM、1*USB2.0（Standard version doesn’t include these ports） |
| Other Function | TPM2.0 security encryption、 Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、 Watchdog（0～255 level）, (Standard version doesn’t set these function) |
| I/O | 2*USB2.0，2*COM，1*VGA,4*Intel 1000M LAN， 4*USB3.0，1*HDMI， 1*Audio (Support Mic and Speaker at the same time) |
| 2*COM（COM1、COM2 RS232/RS422/RS485 Optional）， 1*2Pin power supply phoenix connector，1*Power Switch |
|
| Network | 4*Intel i210/i211-AT 10/100/1000M LAN |
| Power Supply | DC 9V ～ 36V wide voltage Input， support positive pole and negative electrode connect reversely protection； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation，Medical， Logistics Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | Titanium gray (Color can be customized) |
| Material | Aluminum alloy chassis |
| Size | 280*143*40mm |
| Weight | 1.45KG |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industrial SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
