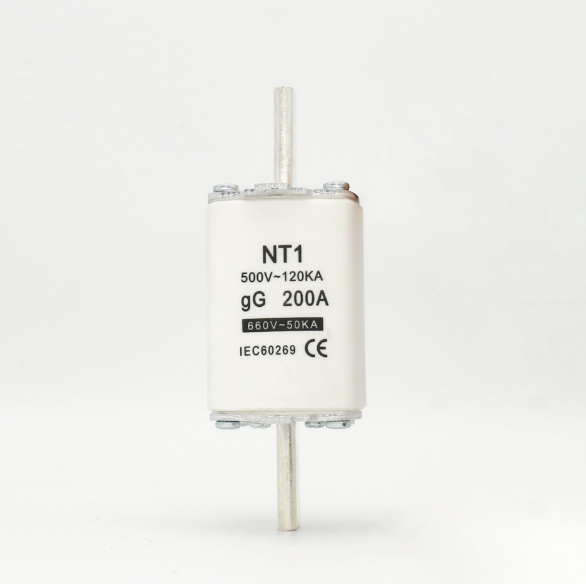

200A NT1 Fuse Link,
This series of fuse links is mainly used in AC 50Hz, rated voltage up to 1140V,
rated current up to 1250A and for protecting electric equipment from overload,
and short-circuit. lt can reliably break the min. fusion current to any current within 120KA.
It is also available for the protection of semiconductor parts and equipments against short-circuit (type aR),
and protection of motors (type aM). This series of fuse links conforms to GB13539 and lEC60269 standards.
Design Features
It adopts the material with high quality. The arc-extinguishing medium is quartz sand and fuse tube is high strength ceramic.The advanced manufacturing craft work ensures the performance of small power waste, stable characteristic for the product. The outline structure and installation dimension joints the advanced similar products from domestic and abroad.
Feature
The corresponding speed is fast.
Wide range of protection.
Easy to install.
Application
In industrial and civil appliances, fast fuses will be more and more widely used.
Detail
Voltage：690Vac
Current:200A
Standard:IEC60269
Country:China
