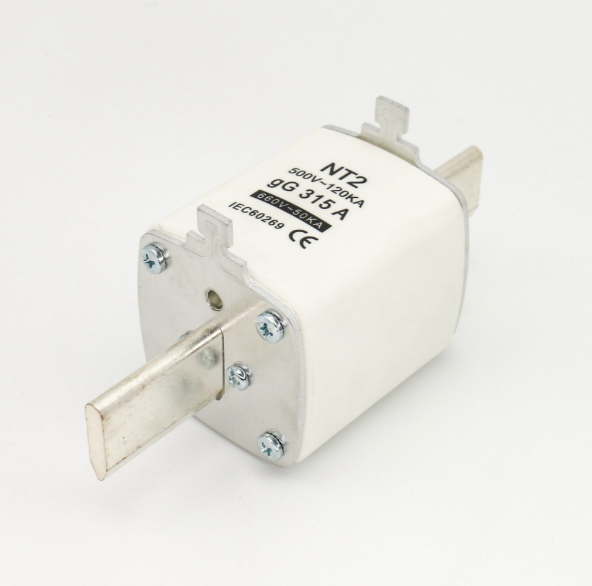

315A NT2 Fuse Link,
It made of ceramic material with high temperature resistance, corrosion resistance,
and good insulating properties.NT series square ceramic fuses are commonly use in industrial electrical equipment,
power systems and electronic equipment to protect circuits from overloads and short circuits.
Design Features
It adopts the material with high quality. The arc-extinguishing medium is quartz sand and fuse tube is high strength ceramic.
The advanced manufacturing craft work ensures the performance of small power waste,
stable characteristic for the product.
The outline structure and installation dimension joints the advanced similar products from domestic and abroad.
Features
High reliability: made of high quality materials,
with stable performance and reliable protection.
Large current capacity: able to withstand large current loads,
suitable for a variety of industrial equipment and power systems.
Quick disconnection: able to quickly cut off the current when the circuit is overloaded,
or short-circuited, protecting the safety of equipment and personnel.
Multiple specifications: a variety of specifications,
and rated currents are available, suitable for different circuits and equipment needs.
| No. | Product model | Domestic and Overseas similar products |
Rated Voltage (V) |
Rated current (A) |
Overall dimension (mm) |
|||||
| A | C | D | E | H | ||||||
| gG | aR | |||||||||
| 18012 | RT16-1 | NT1 NH1 | RS32 | 500/690 | 32-250 | 135 | 68 | 48 | 20 | 60 |
| 18013 | RT16-2 | NT2 NH2 | RS33 | 500/690 | 80-400 | 150 | 68 | 58 | 25 | 72 |
| 18014 | RT16-3 | NT3 NH3 | RS34 | 500/690 | 160-630 | 150 | 68 | 68 | 32 | 84 |
