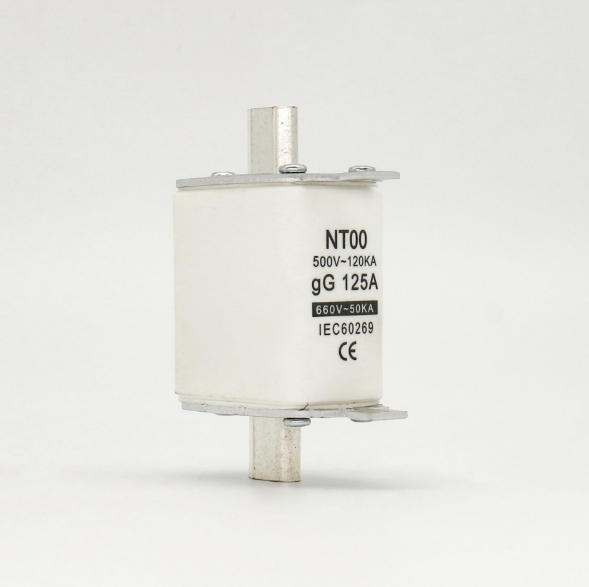

125A NT00 Fuse Link,
NT series square ceramic fuse is an electrical safety device used to protect circuits,
and equipment. It is usually made of ceramic material with a square shape,
and contains a metal wire or filament inside.
When the current exceeds the rated value, the wire will fuse, cutting off the circuit and providing protection.
Design Features
It adopts the material with high quality. The arc-extinguishing medium is quartz sand and fuse tube is high strength ceramic.The advanced manufacturing craft work ensures the performance of small power waste, stable characteristic for the product. The outline structure and installation dimension joints the advanced similar products from domestic and abroad.
Specification
Breaking capacity: 120kA
Class of operation: gG
Rated current: 125A
Rated voltage: 500V
Country of origin: China
Application: common industrial circuit
| No. | Product model | Domestic and overseas similar products |
Rated Voltage (V) |
Rated current (A) |
Overall dimension (mm) |
|||||
| A | C | D | E | H | ||||||
| gG | aR | |||||||||
| 18008 | RO30A | NH00C | 500/690 | 4-2025 | 78 | 49 | 21 | 15 | 48 | |
| 18009 | RT16-000 | NT00C NH00C | RS30C | 500/690 | 4-2025 | 78 | 49 | 21 | 15 | 52 |
| 18010 | RT16-00 | NT00 NH00 RT20-003NA |
RS31 | 500/690 | 4-160 | 78 | 49 | 29 | 15 | 56 |
| 18011 | RT16-0 | NTO NH0 | 500/690 | 4-160 | 125 | 68 | 29 | 15 | 56 | |
