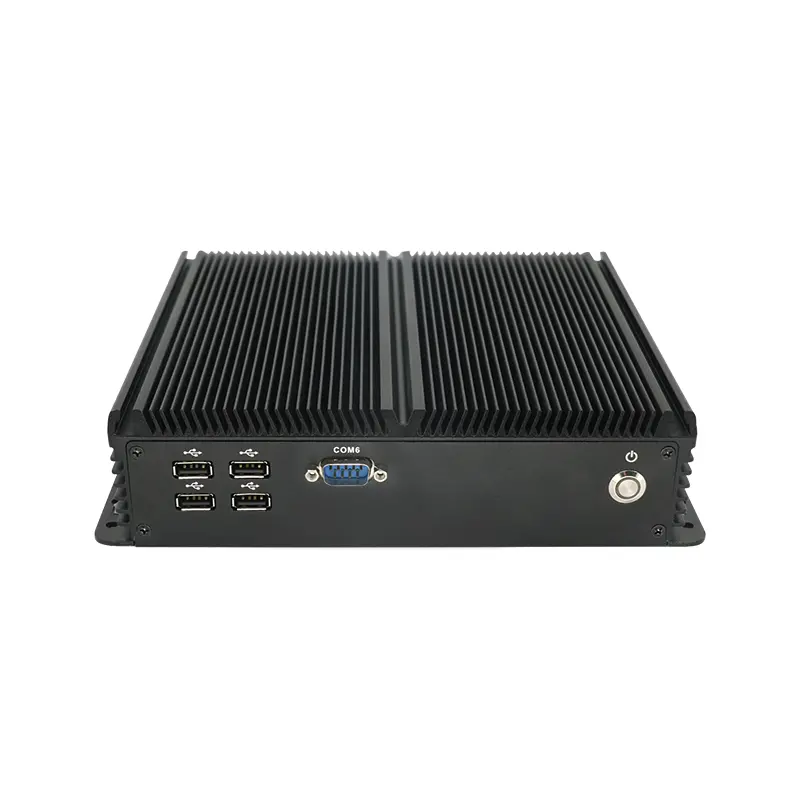

J4125 Industrial Mini Computer,
with Intel Celeron J4125 Quad Core Fanless,
and 1*DDR4 Max Support 8GB Memory Slot
| System Parameter | |
| Model | IBOX-1026 Industrial Computer |
| Processor | Intel Celeron J4125（Quad core quad threading， 4MB cache，2.0GHz，Max turbo 2.7GHz） |
| CPU Architecture | Gemini Lake Refresh |
| Chipset | Integrated Intel HD Graphics 600 |
| Memory | Support 1*DDR4 2400MHz SODIMM RAM Slot，MAX 8GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*HD，1*VGA |
| Storage | Support 1*M.2 2280 Slot, 1*2.5 HDD |
| Expansion | 1*Mini PCIE Slot（4G/WIFI/BT Optional，Embedded SIM slot） |
| Optional Ports：GPIO、4*USB2.0、PS/2 、LPT | |
| Network | 2*Intel i211-AT 10/100/1000M Ethernet LAN |
| Front I/O | 4*USB2.0，1*Power Switch,1*COM |
| Rear I/O | 1*DC,1*VGA,1*HDMI, 2*USB3.0， 2*1000M LAN, 1*MIC,1*SPK, 5*COM |
| 1*DC，1*HDMI，2*DP，2*Intel 1000M LAN， 1*SIM Card Slot，1*Audio (support audio and mic input) |
|
| Input Voltage | DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity、 Wake on LAN、PXE boot |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 234 * 200 * 54 mm |
| Weight | 2.0kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industrial SSD）， Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
