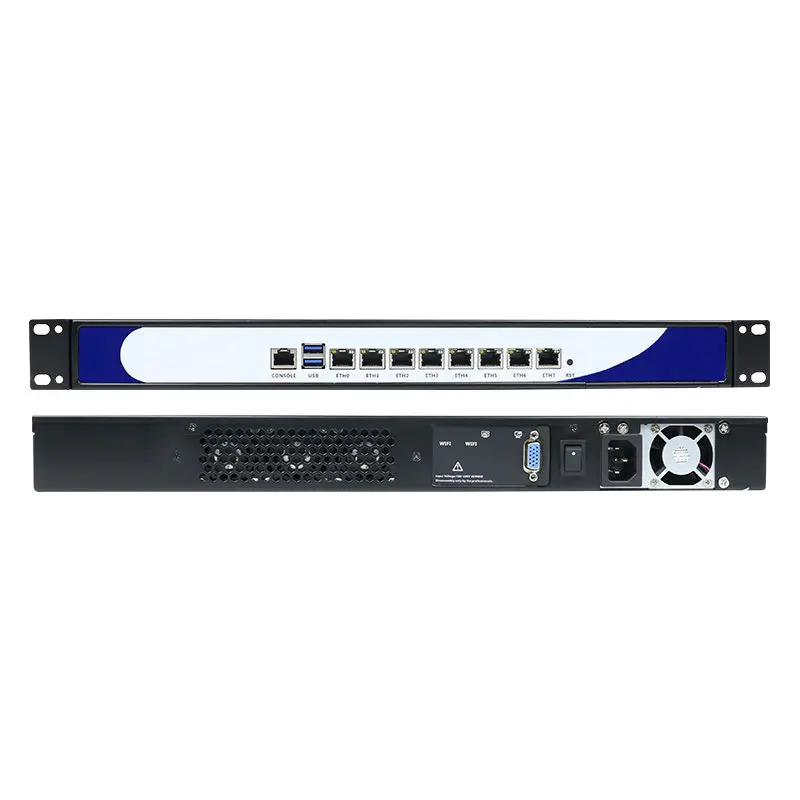

1U Network Security Firewall Server,
support 6th 7th 8th Desktop Core i3/i5/i7 CPU,
with 2* DDR4 2133/2400 Ram Max 32G.
| System Parameter | |
| Model | NS-1U8L（C236)Server Rack Mount PC |
| Processor | Intel Core i3-8100T（Quad Core，4 thread, 3.1 GHz）
Intel Core i5-8500T（6 Core，6 thread, 2.1 GHz， Intel Core i7-8700T（6 Core, 12 thread, 2.4 GHz， |
| Chipset | Intel C236 |
| Memory | Support 2*DDR4 2133/2400MHz SODIMM，MAX: 32 GB |
| Display Port | 1*VGA（1*HD-M-I can be expand） |
| Front I/O | 1*RJ45 COM（support console function）， 2*USB3.0，8*intel Gbe Lan |
| Front I/O | 1*VGA，1*power SW，1*AC input port |
| Expansion | Support 2*PCI-E X8（4*1000M Lan or 4*1000M SFP）
Support 1*M.2 Slot（Support 2260/2280）, |
| Network Port | 8* Intel i211-AT 1000M Lan |
| Storage | Support 1*M.2 2280Support 2*2.5/3.5 inchs SATA |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Applied in Firewall, Network Server, with Network Security, Router etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High Quality Steel |
| Dimension | 482 * 501 * 44.5mm |
| Weight | 7.2kg |
| Environmental Parameter | |
| Work Temp | -10℃ ～ +50℃ |
| Work Humidity | 5% ～ 95% non-condensing |
