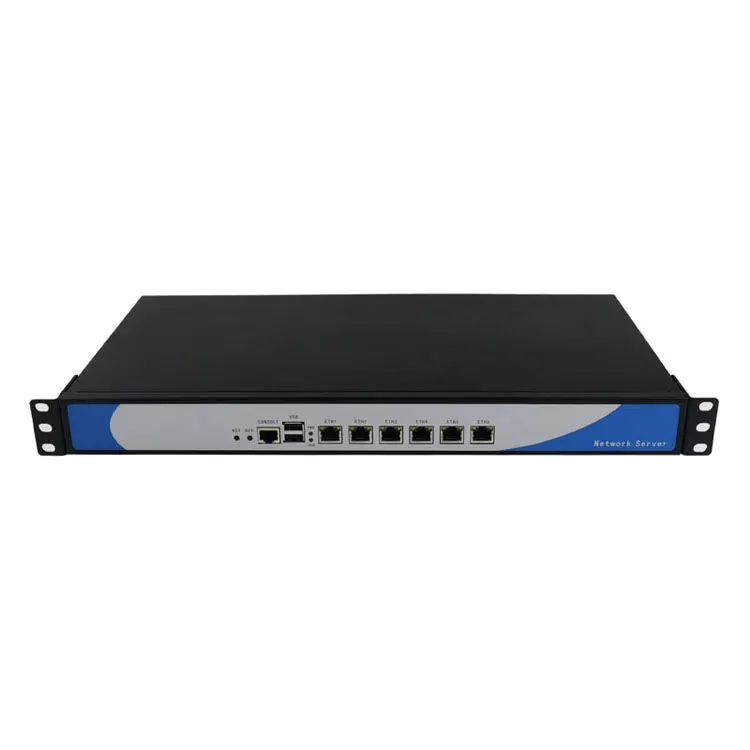

1U8L(B85) Rack Mount Server Structure Network Security Platform 4th Core i3/i5/i7 LGA1150 DDR3 1333/1600 MAX 16G
| System Parameter | |
| Model | NS-1U8L(B85) Network cloud Sever computer |
| Processor | Intel Core i3 4160（dual core, 4 threads，3.6 GHz）
Intel Core i5 4460（quad core, 4 threads，3.2 GHz，turbo boost 3.4 GHz） Intel Core i7 4770（quad core, 8 threads，3.4 GHz，turbo boost 3.9 GHz） |
| Chipset | Intel B85 |
| Memory | Support 2*DDR3 1333/1600 MHz，SODIMM, Max:16 GB |
| Display Port | 1*VGA |
| Front I/O Port | 1*RJ45 COM（support Console），2*USB2.0，6*Intel 1000M LAN |
| Back I/O Port | 1*VGA，1*Power Switch，1*AC power port |
| Expansion Slot | 1*MINI PCIE（Support MSATA）1*MINI PCIE（WIFI/Bluetooth optional） |
| LAN | 6*Intel 82583V LAN，2*Optical Fiber Ports optional |
| Storage | 1*MSATA1*2.5” SATA HDD（2*2.5” SATA HDD optional） |
| Power Supply | 110～240V/50～60Hz AC Input |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application |
Firewall, Network Server, Network Security, Router etc. |
| Structure Parameter | |
| Color | Black |
| Material | Good quality of cold-rolled sheet |
| Dimension | 440 * 250 * 44.5mm |
| Weight | 3.4kg |
| Environmental Parameter | |
| Work Temp | -10℃ ～ +50℃ |
| Work Humidity | 5% ～ 95% non-condensing |
