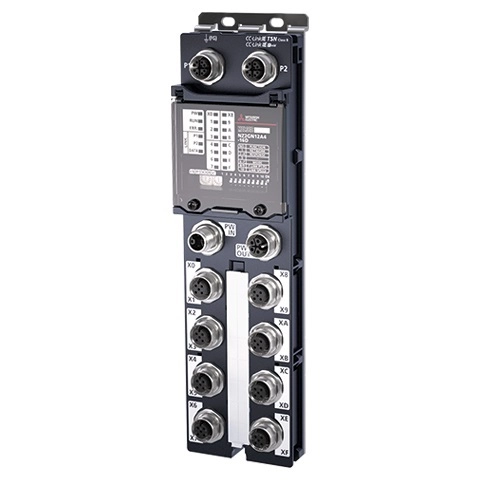

MITSUBISHI ELECTRIC PLC Remote Input Module NZ2GN12A4-16D,
24V DC, 16 inputs, positive common, 2-4 wire connection, IP67 waterproof connector.
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE DC INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,25 |
Conformity
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 63 |
|---|---|
| Height (mm) | 238 |
| Depth (mm) | 37,5 |
| Weight (kg) | 0,41 |
Product Packaging
| Cardboard (g) | 177 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 4 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
