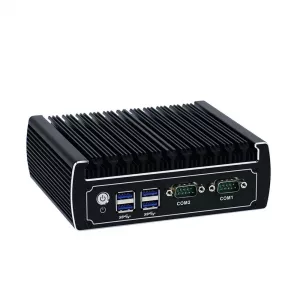

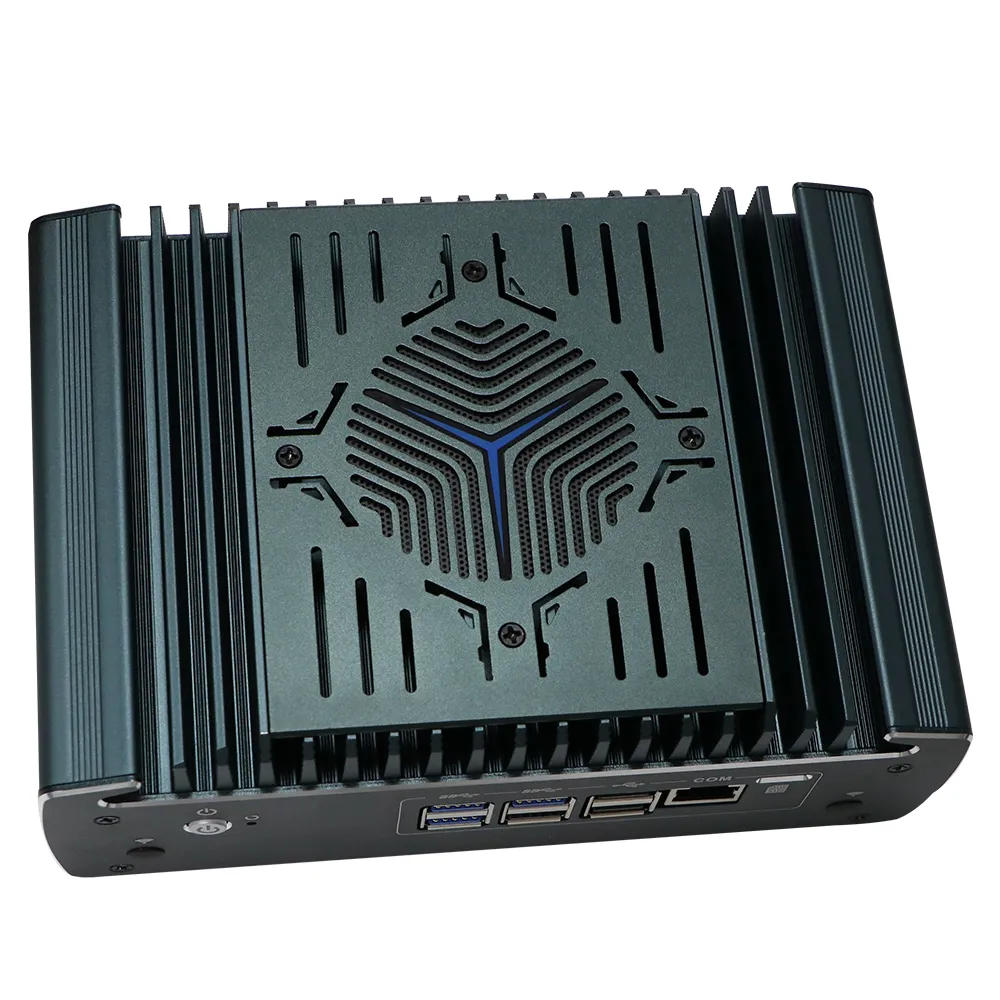

12th Gen Industrial Firewall Appliance Mini PC,
with 6 LAN Hardware 6 Intel i225-V 2.5G ,
and optional 4 POE 3 M.2 slots ( WIFI + 4G/5G ).
| System Parameter | |
| Model | Nano-N3161 |
| Processor | Intel Core i3 1215U (Six cores Eight threads, turbo frequency up to 4.4 GHz) |
| Intel Core i5 1235U (Ten cores Twelve threads, turbo frequency up to 4.4 GHz) |
|
| Intel Core i7 1255U (Ten cores Twelve threads, turbo frequency up to 4.7 GHz) |
|
| Chipset | Intel Iris Xe Graphics |
| Memory | 2 DDR4 3200 MHz SODIMM Ram slots, Max 64 GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*DP,1*HD (Support synchronous/asynchronous dual display, DP interface resolution up to 4096×2160 @ 60Hz) |
| Storage | 1 M.2 2280 slot, 1 2.5-inch SSD/HDD |
| Expansion | 1 M.2 2280 M-key slot (only supports NVME protocol)
1 M.2 3052 B-key slot (USB3.0 signal, 1 M.2 2230 E-key slot (support WIFI, BT) |
| Front I/O | 1 Power Button, 1 Restart , 3 USB3.1, 3 USB2.0, 1 RJ45 COM (support Console function) |
| Rear I/O | 1 DC , 6 RJ45 Lan , 1 DP(1.4a) , 1 HDMI(2.1) |
| Network | 6 Intel i225-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE function |
| Input Voltage | Support DC 12V ； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity, Timing boot,Wake on LAN,PXE boot,Watchdog（0～255 level） |
| Application | Firewall,VPN,Network server, Network security,Router etc. |
| Structure Parameter | |
| Color | Metal gray【Any color can be customized】 |
| Material | High-quality all aluminum， surface anodic oxidation |
| Dimension | 186 * 126.5 * 66 mm |
| Weight | 1.3 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +50℃（Industrial SSD）， Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
